Elplast

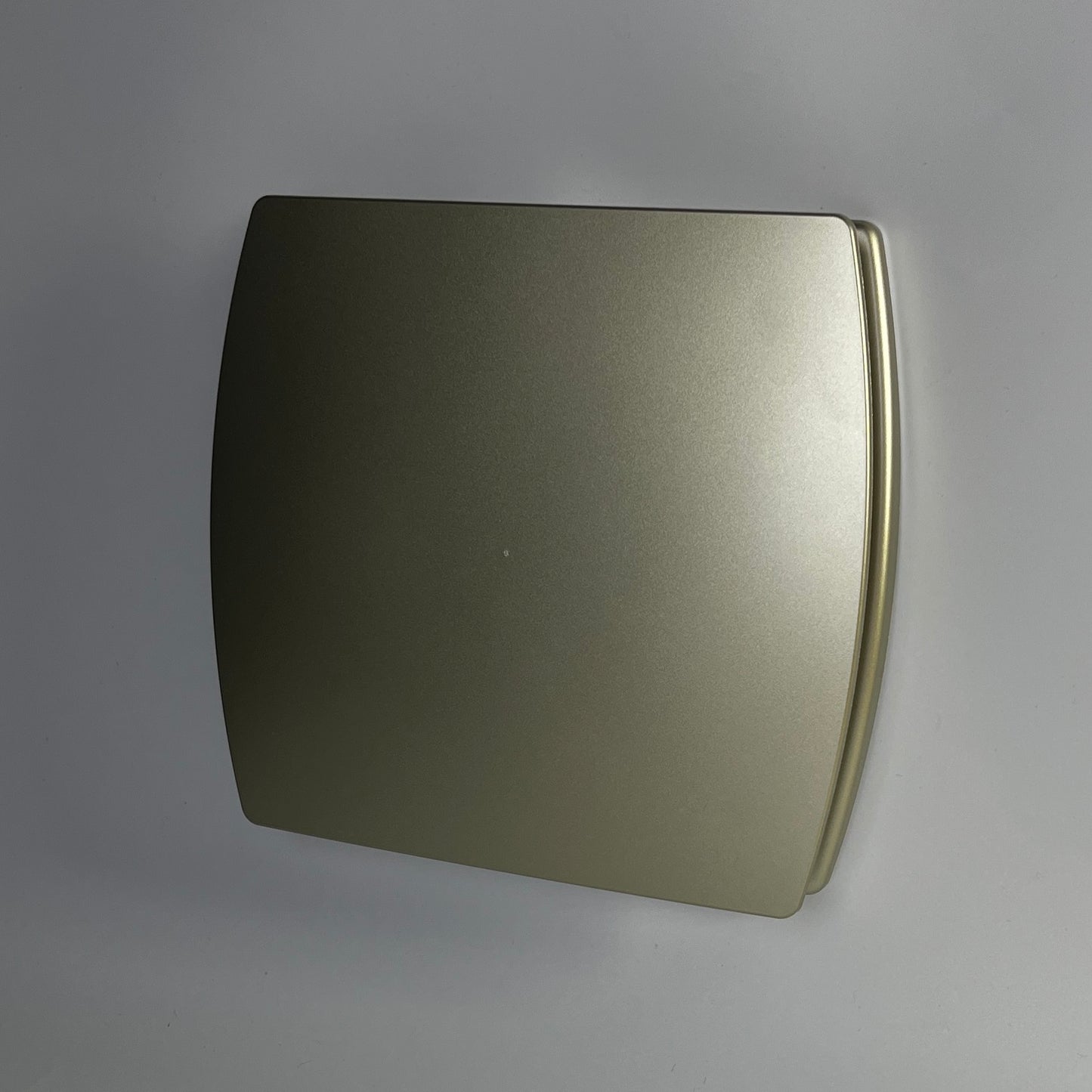

Bathroom fan Eol F12HTGF

Bathroom fan Eol F12HTGF

Regular price 240,00 zł PLN
Regular price Sale price 240,00 zł PLN
Sale Sold out
Tax included.

  • Rated voltage: 230 V
  • Colour: gold
  • Mains frequency: 50 Hz
  • Power consumption: 20 W
  • Air output: 150 m3/h
  • Bearing type: sliding
  • Degree of protection (IP): IP-X4
  • Sound pressure level: 42 dB (A)
  • Speed: 2360 rpm
  • Nominal size: 120 mm
  • Material: ABS/PP
  • Place of installation: Wall
  • Mounting type: surface-mounted
  • Fan weight: 0.59 kg
  • A: 150 mm
  • B: 162 mm
  • C: 88 mm
  • D: 119 mm
  • E: 28 mm
  • Mounting hole: Ø120 mm

Fans intended for supporting ventilation in residential and commercial spaces. They are characterised by quiet operation and high efficiency and reliability. High-quality material ensures the durability of the device, but also maintains its aesthetic qualities.

The duct fan is an ideal solution for bathrooms and toilets. It is used to support gravitational ventilation and can be installed in rooms that have individual ventilation ducts, in residential buildings of collective residence and public use, with the exception of rooms where corrosive or explosive atmospheres may occur.

HT model - fan with humidity sensor The HT system has all the functions of the T system, additionally it is equipped with a humidity sensor which allows the fan to be activated if the set humidity threshold is exceeded. The fan is switched on automatically when the humidity in the air surrounding the fan reaches a pre-set level or when W/WO is activated.
Switching off takes place after a preset delay time, counted from the moment the required humidity level is reached in the room or the W/WO switch is turned off.
A device such as a fan with a humidistat provides us with adequate room circulation and, in addition, maintains the correct humidity level.

Construction:

Fan made of high quality plastic

Installation:
  • Wall mounting
  • For indoor use
  • Mounting with screws
Accessories:

Moisture sensor with time delay
View full details
