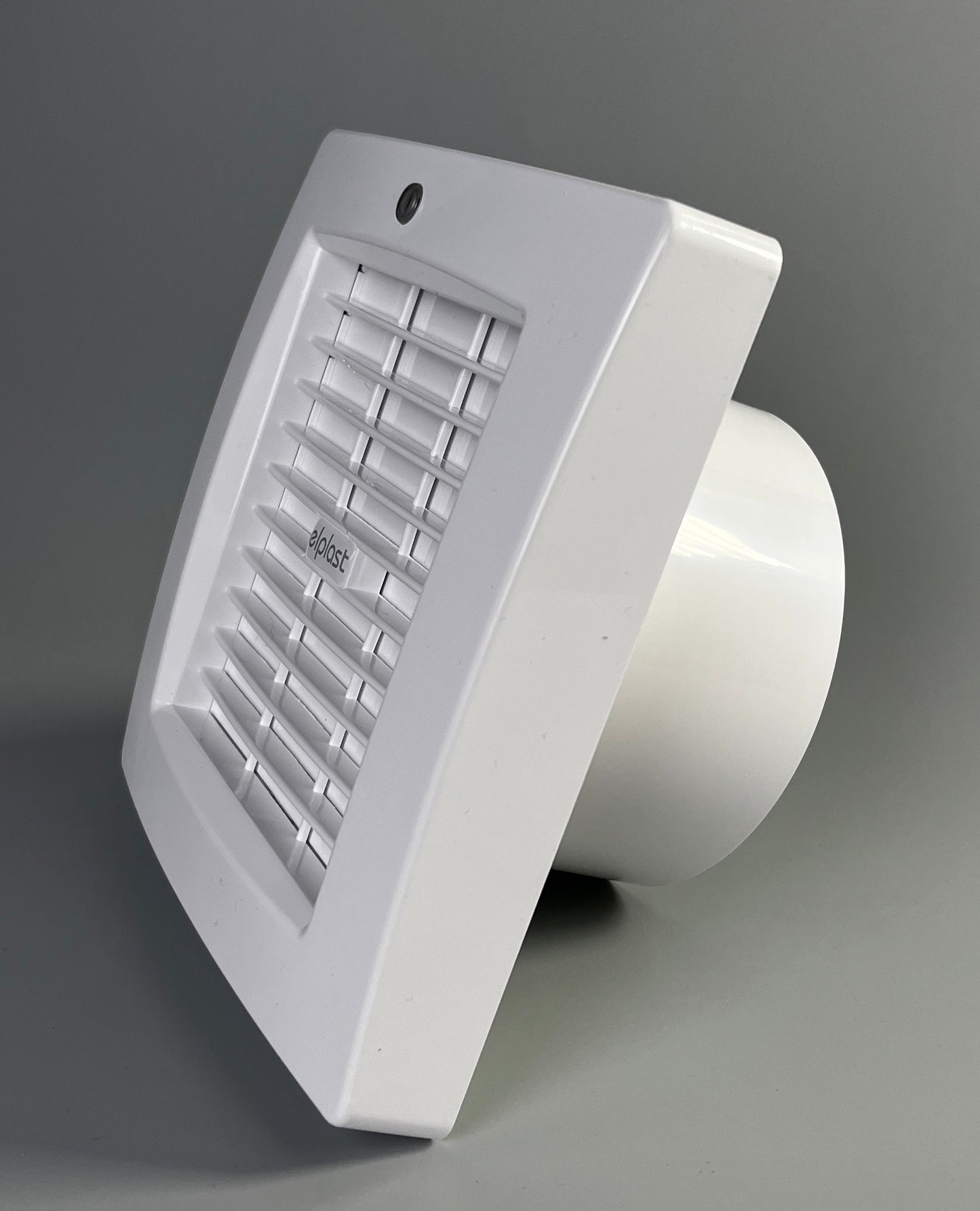

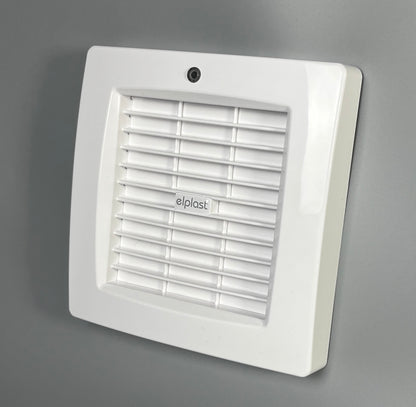

Bathroom fan Atol 120AFT
Bathroom fan Atol 120AFT
Couldn't load pickup availability
- Rated voltage: 230 V
- Colour: white
- Mains frequency: 50 Hz
- Power consumption: 20 W
- Air output: 150 m3/h
- Bearing type: sliding
- Degree of protection (IP): IP-X4
- Sound pressure level: 42 dB (A)
- Speed: 2360 rpm
- Nominal size: 120 mm
- Material: ABS/PP
- Place of installation: Wall
- Mounting type: surface-mounted
- Fan weight: 0.63 kg

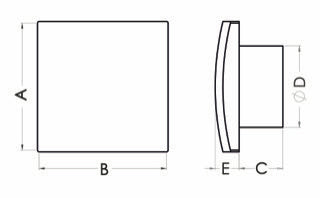

- A: 177 mm
- B: 177 mm
- C: 71 mm
- D: 119 mm
- E: 31 mm
- Mounting hole: Ø120 mm
Fans designed to assist ventilation in residential and commercial premises are characterised by quiet operation, high efficiency and reliability. They use high quality material, which ensures the durability of the device and also maintains its aesthetic qualities.
The duct fan is an ideal solution for bathrooms and toilets. It is used to support gravitational ventilation and can be installed in rooms that have individual ventilation ducts, in residential buildings of collective residence and public use, with the exception of rooms where corrosive or explosive atmospheres may occur.
FT model - fan with photocell. The fan is switched on in response to a change in light intensity in the room where the fan is installed or when a switch is turned on.
The fan is available in version A, which means that it is equipped with an automatic shutter. When the fan is activated, the time taken for the louvre to fully open is approximately 30 seconds. When the louvre is in full opening, the time for the louvre to close completely when the fan is switched off is approximately 90 seconds.
Construction:
Fan made of high quality plastic.
Installation:
- Wall mounting
- For indoor use
- Mounting with screws
Accessories:
- Photocell
- Automatic shutter
