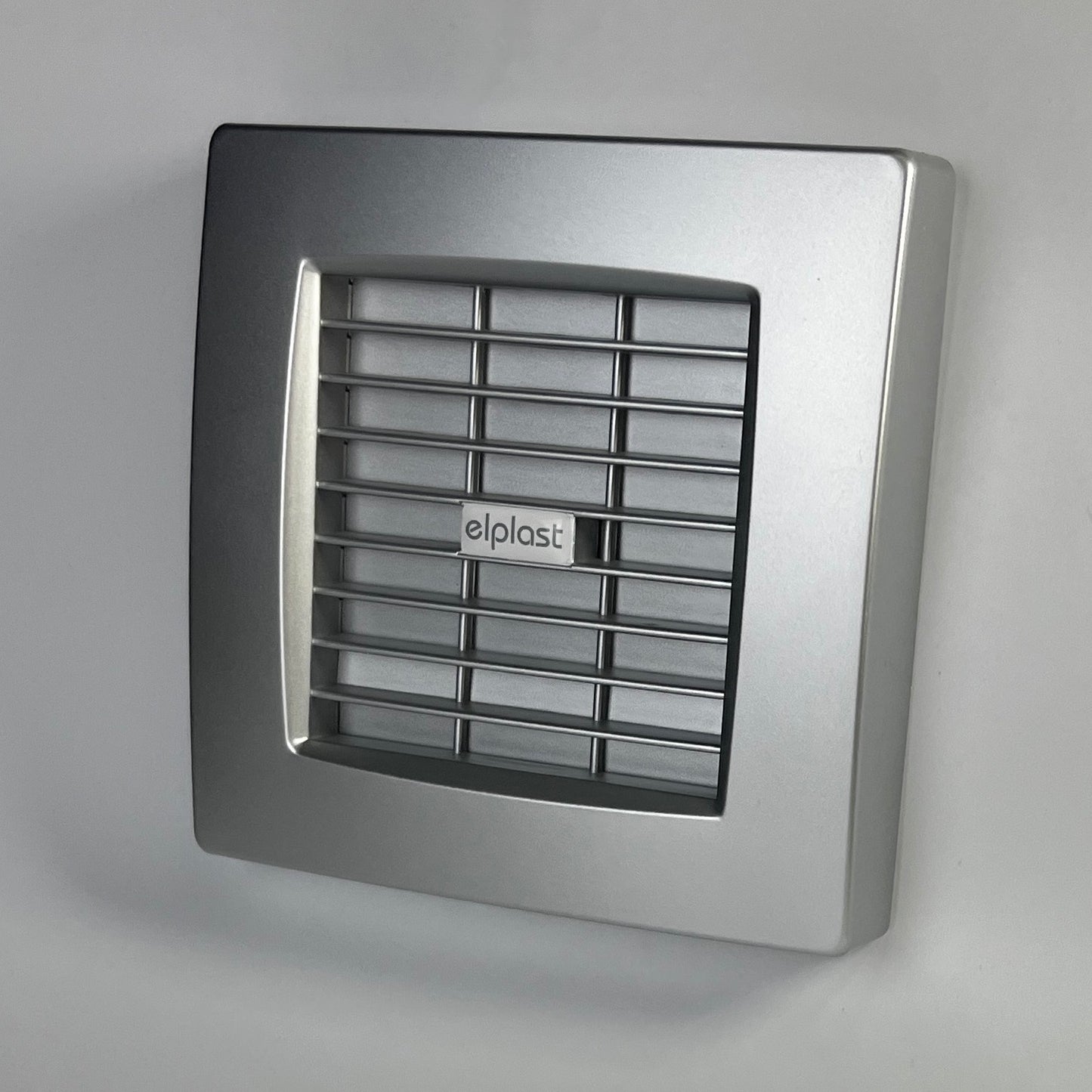

Bathroom fan Atol 100ATSF
Bathroom fan Atol 100ATSF
Couldn't load pickup availability
- Rated voltage: 230 V
- Colour: silver
- Mains frequency: 50 Hz
- Power consumption: 19 W
- Air output: 100 m3/h
- Bearing type: sliding
- Degree of protection (IP): IP-X4
- Sound pressure level: 39.5 dB (A)
- Speed: 2550 rpm
- Nominal size: 100 mm
- Material: ABS/PP
- Mounting location: Wall
- Mounting type: surface mounted
- Fan weight: 0.53 kg
- A: 155 mm
- B: 155 mm
- C: 66 mm
- D: 99 mm
- E: 30 mm
- Mounting hole: Ø100 mm
Fans intended for supporting ventilation in residential and commercial premises are distinguished by their quiet operation, high efficiency and reliability. They are made of high-quality plastic, which ensures the durability of the device as well as the maintenance of aesthetic qualities.
The duct fan is ideal for bathrooms and toilets. It is used to support gravitational ventilation and can be installed in rooms that have individual ventilation ducts, in residential buildings of collective residence and public use, with the exception of rooms where an atmosphere causing corrosion or explosion may occur.
TheT - fanmodel has a timer system, which makes it possible to control the switching of the fan by connecting the controller to an electrical switch. An existing light switch in the ventilated room can be used for this purpose. The time setting can be adjusted by setting the control's potentiometer to the required position, and the delay time can be adjusted from 0.5 to 30 minutes.
The fan is also available in the A version, which has an automatic louvre. When the fan is started, the louvre opens fully in approximately 30 seconds. When the fan is switched off, the louvre closes completely in approximately 90 seconds.
Construction:
Fan made of high-quality plastic.
Installation:
- Wall mounting
- Suitable for indoor use
- Mounting with screws
Accessories:
- Timer board
- Automatic shutter
