Elplast

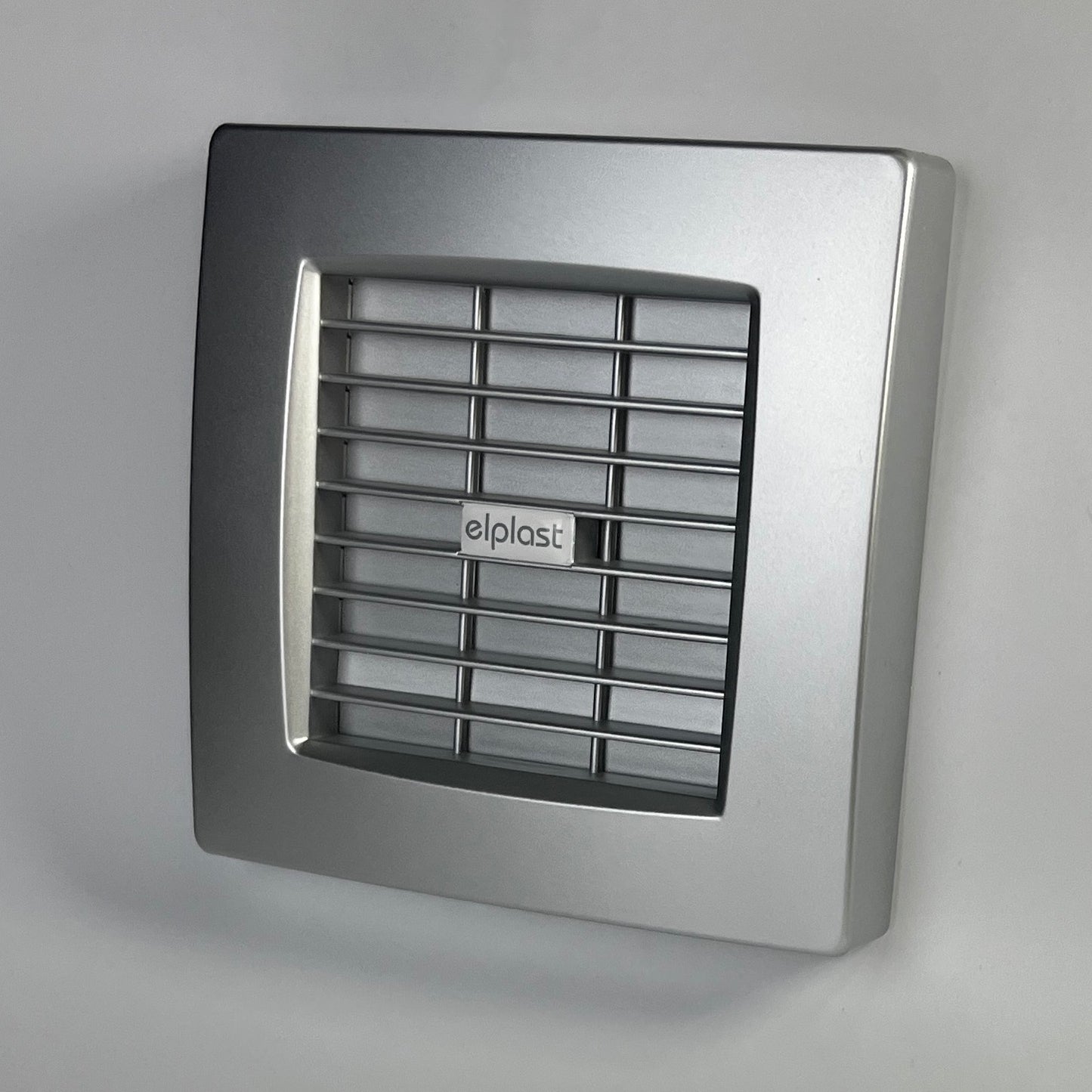

Bathroom fan Atol 100AHTSF

Bathroom fan Atol 100AHTSF

Regular price 194,00 zł PLN
Regular price Sale price 194,00 zł PLN
Sale Sold out
Tax included.

  • Rated voltage: 230 V
  • Colour: silver
  • Mains frequency: 50 Hz
  • Power consumption: 19 W
  • Air output: 100 m3/h
  • Bearing type: sliding
  • Degree of protection (IP): IP-X4
  • Sound pressure level: 39.5 dB (A)
  • Speed: 2550 rpm
  • Nominal size: 100 mm
  • Material: ABS/PP
  • Mounting location: Wall
  • Mounting type: surface mounted
  • Fan weight: 0.53 kg
  • A: 155 mm
  • B: 155 mm
  • C: 66 mm
  • D: 99 mm
  • E: 30 mm
  • Mounting hole: Ø100 mm

Fans are designed to support ventilation in residential and commercial premises. They are characterised by quiet operation, high efficiency and reliability. Made of high-quality material, they ensure the durability of the device, as well as the maintenance of aesthetic values.

Duct fans are an ideal solution for bathrooms and toilets. They are used to support gravitational ventilation and can be installed in rooms with individual ventilation ducts, in residential buildings, collective housing and public use, with the exception of rooms where corrosive or explosive atmospheres may occur.

HT model - fan with humidity sensor. The HT system has all the functions of the T system and is additionally equipped with a humidity sensor, which allows the fan to be activated if the set humidity threshold is exceeded. The fan starts automatically when the humidity of the air in the vicinity of the fan reaches a set level or when W/WO is switched on. It is switched off after a set delay time, calculated from the moment the required humidity level is reached in the room or the W/WO switch is switched off.

A fan with a humidistat is a device that ensures adequate air circulation in the room and also maintains the correct humidity level.

The fan is available in version A, which has an automatic louvre. When the fan is activated, the louvre opens completely within approximately 30 seconds. When the fan is switched off, the louvre closes completely in approximately 90 seconds.

Construction:

The fan is made of high-quality plastic.

Installation:

  • Wall mounting
  • Suitable for indoor use
  • Mounting with screws

Accessories:

  • Humidity sensor with time delay
  • Automatic shutter
