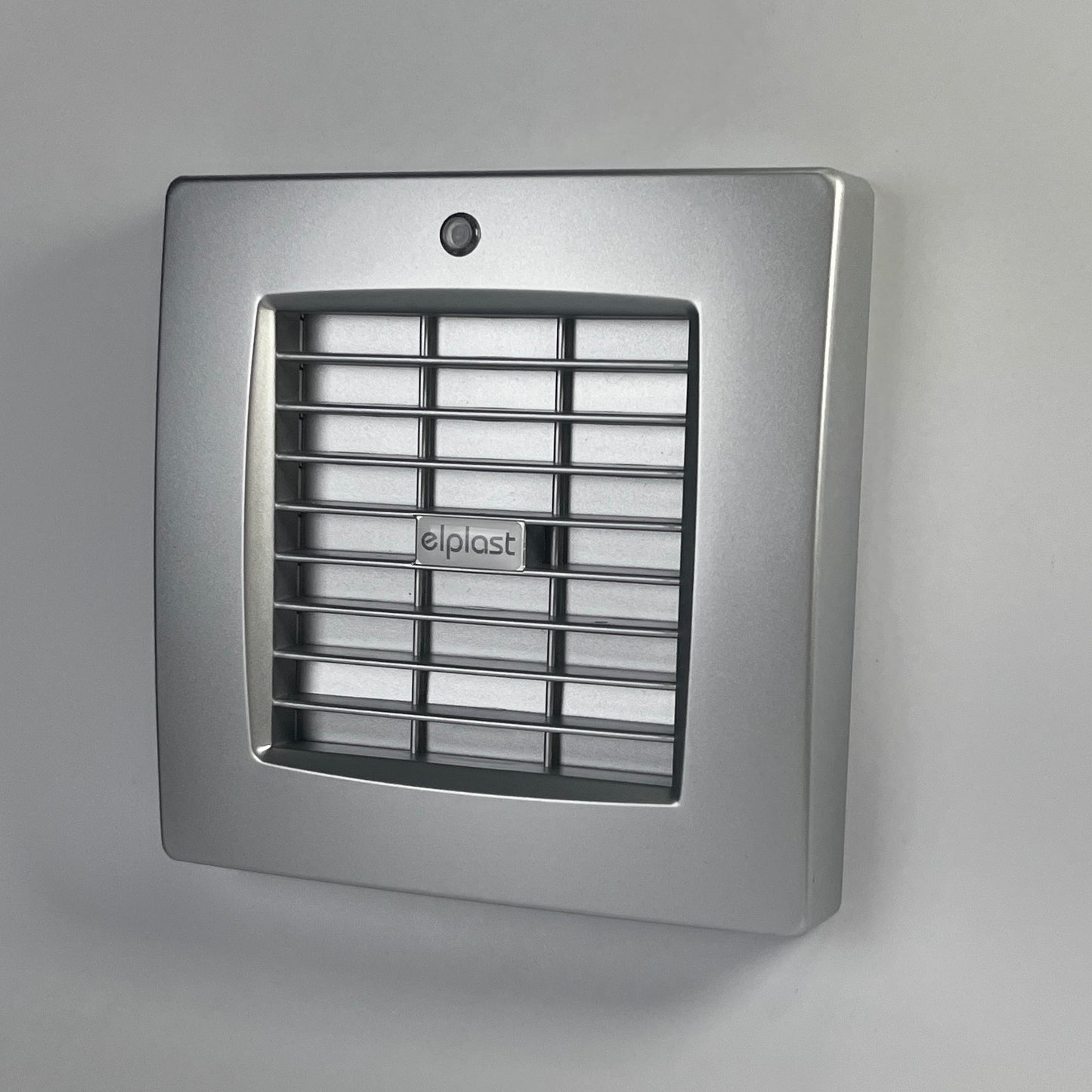

Bathroom fan Atol 100AFTSF
Bathroom fan Atol 100AFTSF
Couldn't load pickup availability
- Rated voltage: 230 V
- Colour: silver
- Mains frequency: 50 Hz
- Power consumption: 19 W
- Air output: 100 m3/h
- Bearing type: sliding
- Degree of protection (IP): IP-X4
- Sound pressure level: 39.5 dB (A)
- Speed: 2550 rpm
- Nominal size: 100 mm
- Material: ABS/PP
- Mounting location: Wall
- Mounting type: surface mounted
- Fan weight: 0.53 kg
- A: 155 mm
- B: 155 mm
- C: 66 mm
- D: 99 mm
- E: 30 mm
- Mounting hole: Ø100 mm
Fans intended for supporting ventilation in residential and commercial premises are characterised by quiet operation, high efficiency and reliability. They are made of high-quality plastic, which ensures the durability of the device and the maintenance of aesthetic values.
The duct fan is an ideal solution for bathrooms and toilets. It is used to support gravitational ventilation and can be installed in rooms that have individual ventilation ducts, in residential buildings of collective residence and public use, except for rooms where an atmosphere causing corrosion or explosion may occur.
FT model - fan with a photocell. The fan is switched on when there is a change in the lighting level in the room where the fan is installed or when the switch is turned on.
The A version of the fan has an automatic shutter. When the fan is activated, the louvre opens completely in approximately 30 seconds. When the louvre is in the fully open state, the time for the louvre to close completely after the fan is switched off is approximately 90 seconds.
Construction:
Fan made of high-quality plastic.
Installation:
- Wall mounting
- For indoor use
- Mounting with screws
Equipment:
- Photocell
- Automatic shutter
