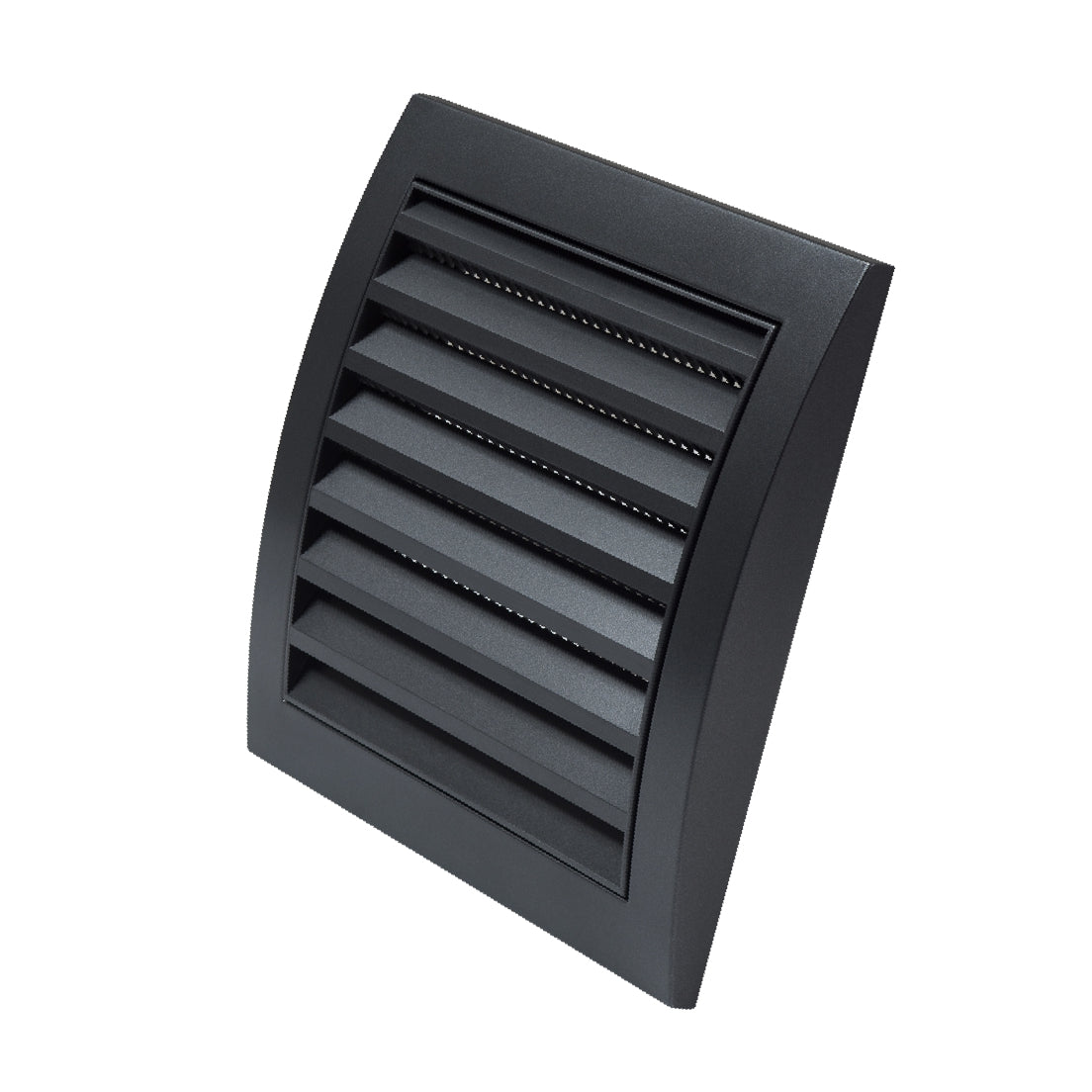

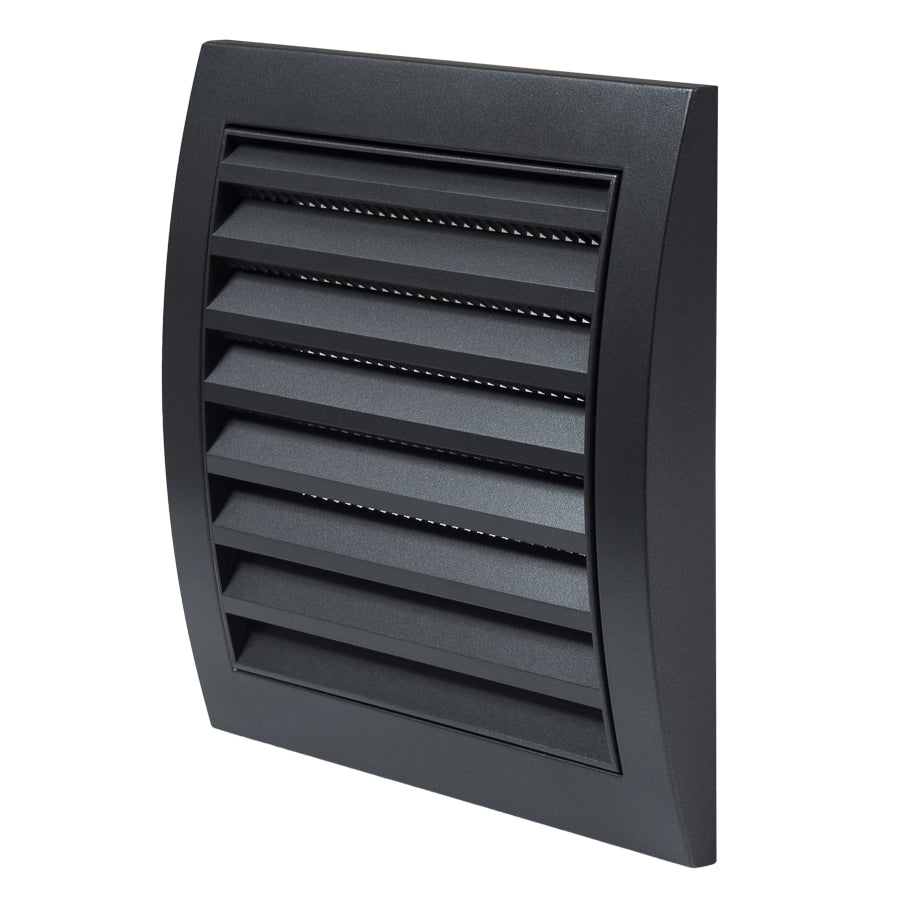

Ventilation grille ND10A

• Colour: Anthracite
• Material: ABS
• Weight: 0.10 kg

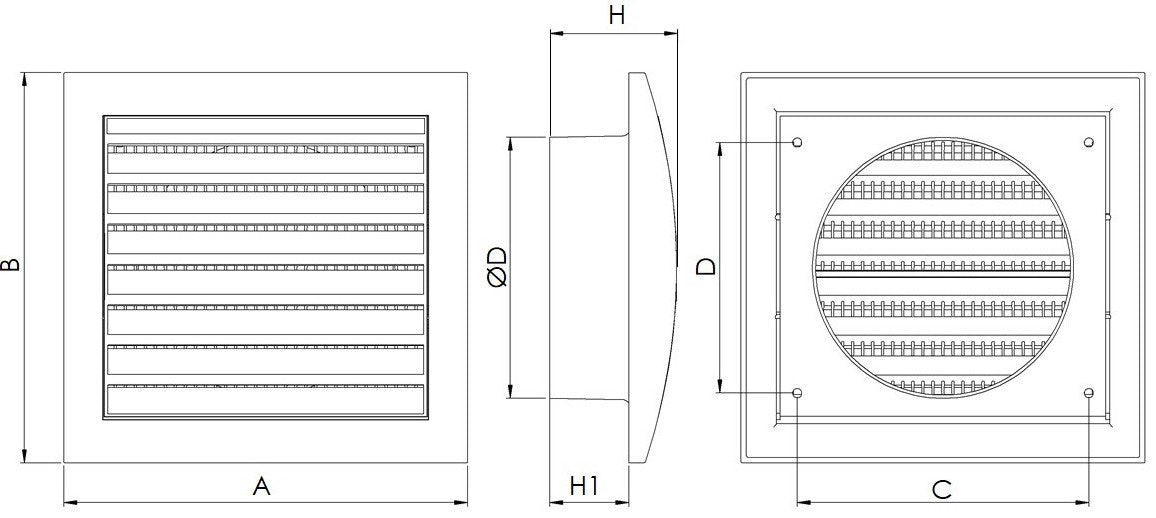

• A: 153 mm
• B: 148 mm
• C: 111 mm
• D: 95 mm
• ØD: 99 mm
• H: 48 mm
• H1: 30 mm

N-series plastic ventilation grilles are made of durable ABS plastic, resistant to temperature and UV radiation. They are intended for decorative and functional use in supply and exhaust ventilation systems. They are available in a variety of colours and sizes and are fitted with a mosquito net. The grilles can be used on walls or ceilings for interior and exterior decoration. Various models are available, including duct-connected or wall-mounted, standard or manually adjustable versions.

Construction:

• Made of durable ABS plastic
• Integrated mosquito net
• Standard or adjustable

Installation:

• Wall or ceiling mounting,
• For indoor or outdoor use,
• Fixing with glue or screws in any position.

Colour: Anthracite
