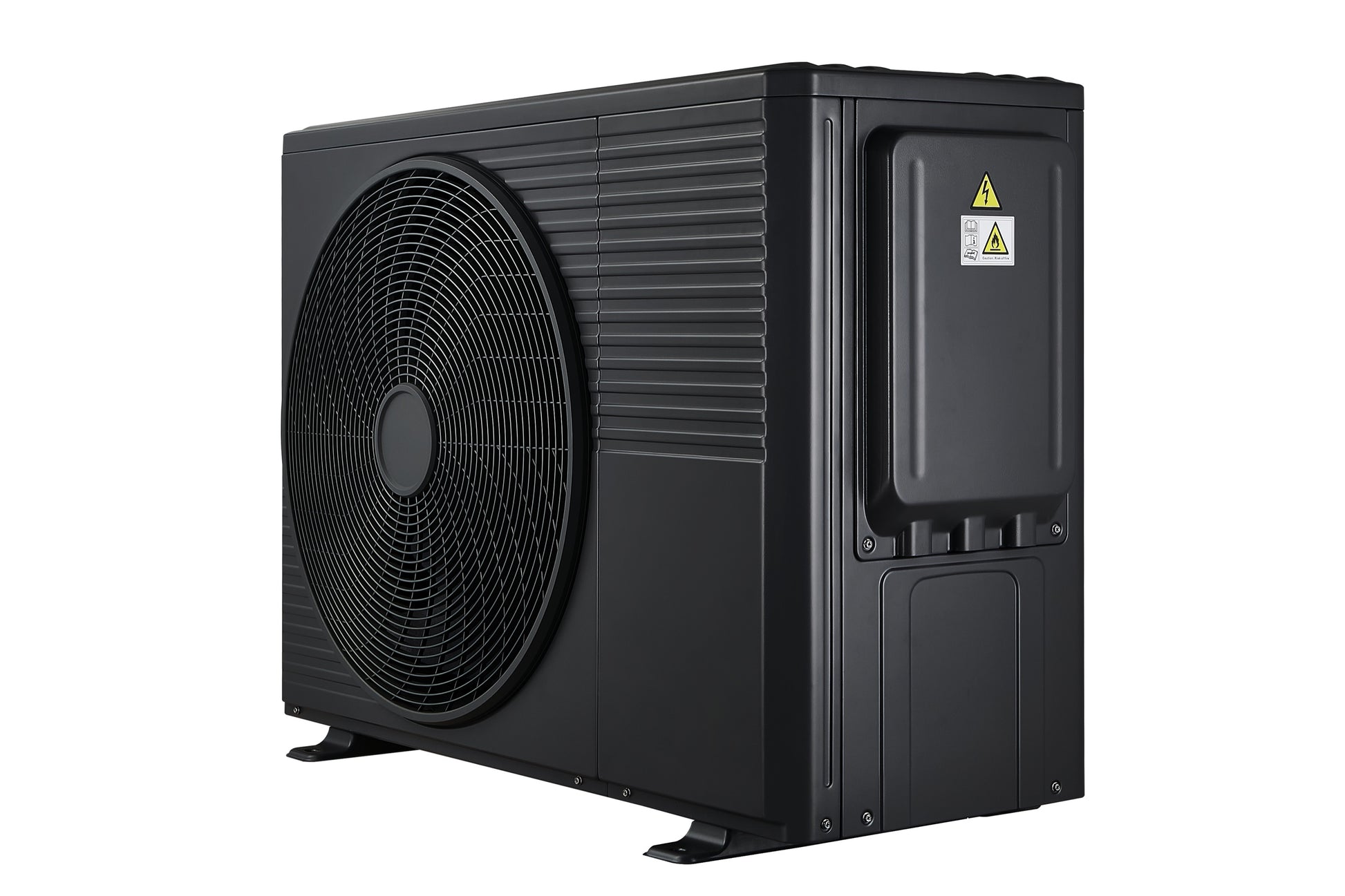

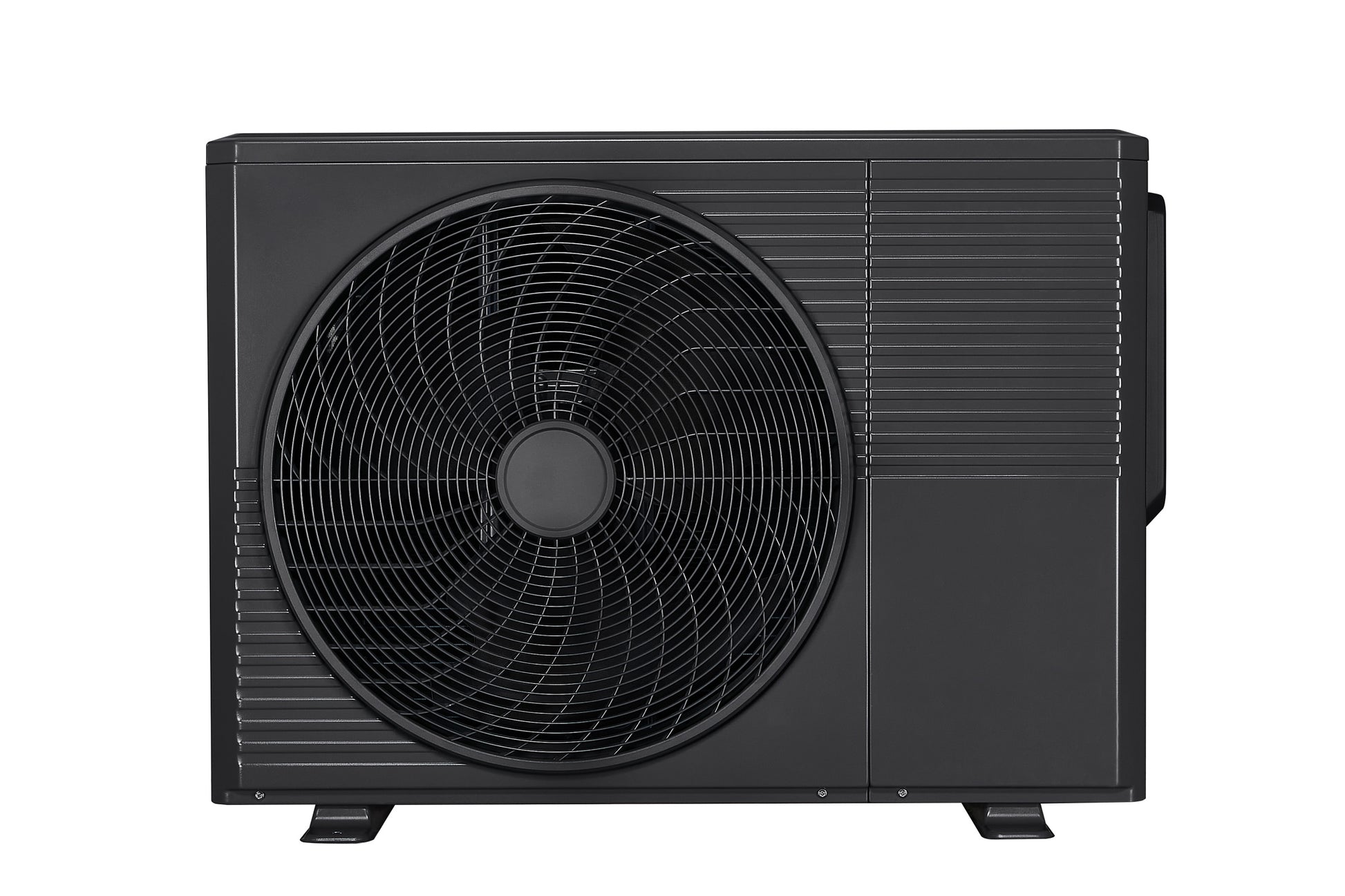

Heat pump monobloc HPM-V90W/R3 9kW R290

Heat pump monobloc HPM-V90W/R3 9kW R290

29.003,00 zł PLN
29.003,00 zł PLN
Sale Sold out
Tax included.
 More payment options
SPECIFICATION
  • Model: HPM-V90W/R3
  • Power Supply: 220-240/1/50  (V/Ph/Hz)
  • Heating (1):  Capacity : 9.00 kW / Rated Input: 1.86 kW / COP : 4.85
  • Heating (2):  Capacity : 9.00 kW / Rated Input: 2.43 kW / COP : 3.70
  • Heating (3):  Capacity : 9.00 kW / Rated Input: 2.86 kW / COP : 3.15
  • Cooling (4):   Capacity:  9.00 kW / Rated Input: 1.91 kW / EER:  4.70
  • Cooling (5):   Capacity : 9.00 kW / Rated Input: 2.95 kW / EER:  3.05
Seasonal space heating energy efficiency class (6)
  • Outlet water temp. at 35℃  A+++
  • Outlet water temp. at 55℃  A++.
  • Refrigerant:  Type(GWP) R290(3) / Charged volume 0.85 kg
  • Sound power level: 67dB
  • Sound pressure level: 53dB(A)
  • Net dimension( W×D×H): 1080x520x857 mm
  • Packaged dimension( W×D×H ): 1180x560x1005 mm
  • Net weight/Gross weight 104/120 kg
  • Water piping connection R1 mm
Ambient temp. range
  • Cooling  -5～43 ℃ / Heating -25～35 ℃
  • Domestic hot water  -25～43℃
Outlet water temp. setting range
  • Cooling  5～25 ℃
  • Heating  25～75 ℃
  • Domestic hot water  20～70℃
Backup electric heater:
  • Optional installation 3/9 kW
  • Capacity steps 1/3
  • Power Supply 3kW (V/Ph/Hz) 220-240/1/50
  • Power Supply 9kW (V/Ph/Hz) 380-415/3/50.
Note：
  1. Outdoor air temperature 7℃ DB，6℃ WB；Water inlet 30℃，Water outlet35℃；
  2. Outdoor air temperature 7℃ DB，6℃ WB；Water inlet 40℃，Water outlet45℃；
  3. Outdoor air temperature 7℃ DB，6℃ WB；Water inlet 47℃，Water outlet55℃；
  4. Outdoor air temperature 35℃ DB；Water inlet 23℃, Water outlet18℃；
  5.  Outdoor air temperature 35℃ DB；Water inlet12℃, Water outlet7℃；
  6. Seasonal space heating energy efficiency class testes in average climate general conditions.
  7. Testing standard: EN12102-1.
  8. Backup electric heater is external installation.
  9. Relevant EU standards and legislation: EN14511; EN14825; EN50564; EN12102; (EU) No 811/2013; (EU) No 813/2013; OJ 2014/C 207/02:2014.

Shenling R290 Air Source Heat Pump has energy class A+++ and the minimum operation ambient temperature is -25℃， and the maximum outlet water temperature is 75℃. It provides heating, cooling, and domestic hot water functions together to meet domestic families’ needs. It has MCS, Keymark, CE,  certifications. By incorporating the full-color LCD display controller, wifi smart control, smart grid.

Next-generation systems leverage the power of R290 refrigerant, recognized as an industry leader for its minimal environmental impact and exceptional efficiency. R290 Refrigerant: A Sustainable Choice R290 refrigerant boasts an ultra-low Global Warming Potential (GWP), a significant improvement compared to traditional refrigerants. This translates to a dramatic reduction in greenhouse gas emissions released by heating and cooling systems. By adopting R290 heat pumps, Shenling is actively contributing to the global effort towards carbon neutrality. Beyond its environmental benefits, the ThermaX Series delivers outstanding efficiency. R290 refrigerant allows these heat pumps to achieve superior performance, translating to lower energy consumption and operational costs for you.
