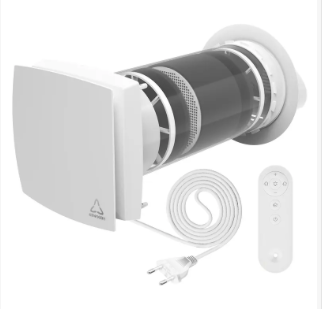

Energy Recovery Ventilator AV-TTW6 (ECO pair1.0)
Energy Recovery Ventilator AV-TTW6 (ECO pair1.0)
Regular price
1.926,00 zł PLN
Regular price
Sale price
1.926,00 zł PLN
Unit price
per
Tax included.
Couldn't load pickup availability
Technical data:
- 3 gears
-
Power input ( I-5.9W II- 8.8W III- 11.3W)
- Current ( I-0.03A II-0.05A III-0.06A)
- Air flow in regeneration mode ( I-26 m3/h II-55 m3/h III- 64 m3/h)
- Airflow inenergy recovery mode( I-14 m3/h II- 27m3/h III-32m3/h)
- SFP ( W/m3/h) ( I-0.43 II-0.31 III-0.35)
- Sound pressure level at 1m (I-28 dB II-32.9 dB III-36.7 dB)
- Sound pressurelevel at 3m(I-12dB II-27.5 dB III-31.9 dB)
- Regeneration efficiency up to 97%
- Class A
- Temperature of transported air -20 ~50
- Indoor air quality monitor (outdoor temperature + indoor CO2).
- Weight 3.4 kg
-

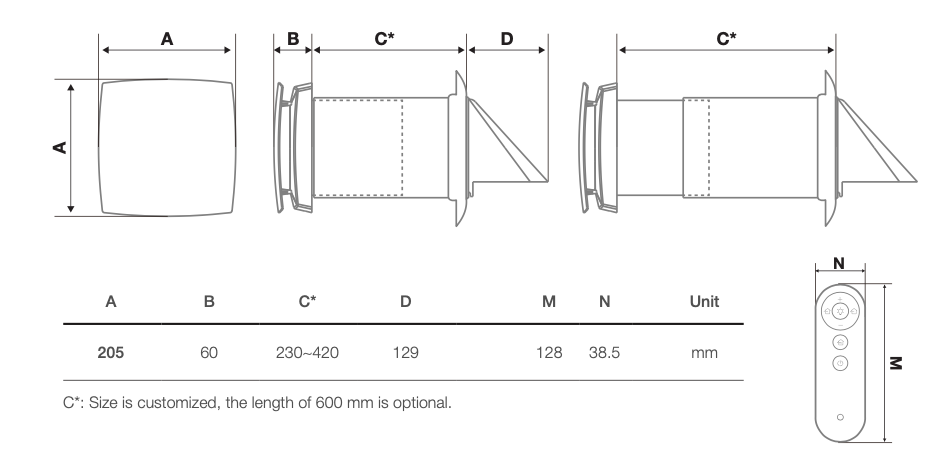

A 205 mm
-
B 60 mm
-
C 230-420 mm
-
D 129 mm
FEATURES:
- Elegant decorative front panel .Specially designed indoor unit can be magnetically connected for maximum airtightness and wind protection.Built-in automatic shutter prevents backflow.
- Reversible DC motor. The reversible axial fan is equipped with EC technology.
- The fan is characterised by low power consumption and quiet operation.
- The fan motor has built-in thermal protection and ball bearings for a long service life.
- Pre-filter and F7 filter (MERV11) as standard.
- Mould prevention.
