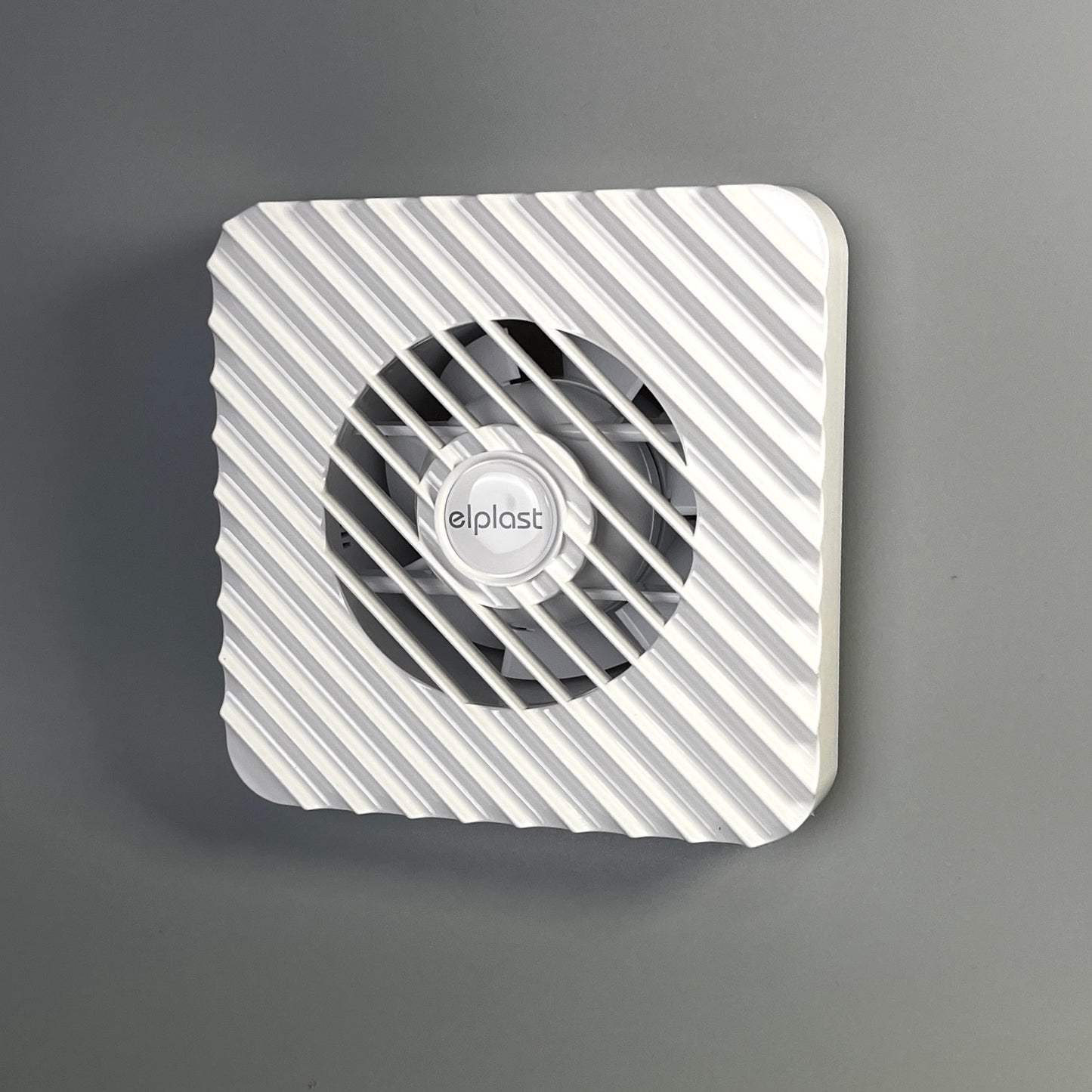

Bathroom fan Zefir 100HT
Bathroom fan Zefir 100HT
Couldn't load pickup availability
- Rated voltage: 230 V
- Colour: white
- Mains frequency: 50 Hz
- Power consumption: 19 W
- Air output: 100 m3/h
- Bearing type: sliding
- Degree of protection (IP): IP-X4
- Sound pressure level: 39.5 dB (A)
- Speed: 2550 rpm
- Nominal size: 100 mm
- Material: ABS/PP
- Mounting location: Wall
- Mounting type: surface mounted
- Fan weight: 0.45 kg
- A: 151 mm
- B: 151 mm
- C: 53 mm
- D: 99 mm
- E: 27 mm
- Mounting hole: Ø100 mm
Fans designed to assist ventilation in residential and commercial premises are characterised by quiet operation, high efficiency and reliability. They use high quality material, which ensures the durability of the device and also maintains aesthetic qualities.
The duct fan is an ideal solution for bathrooms and toilets. It is used to support gravitational ventilation and can be installed in rooms that have individual ventilation ducts, in residential buildings of collective residence and public use, except for rooms where an atmosphere causing corrosion or explosion may occur.
HT model - fan with humidity sensor. The HT system has all the functions of the T system, in addition it is equipped with a humidity sensor which allows the fan to be activated if the set humidity threshold is exceeded. The fan starts up automatically when the humidity in the area around the fan reaches a set level or when the ON/OFF switch is activated. Switching off takes place after a predetermined delay time, calculated from the moment the required humidity level in the room is reached or the W/WO switch is switched off.
The humidistat fan ensures adequate air circulation in the room and maintains the correct humidity level.
Construction:
Fan made of high quality plastic.
Installation:
- Wall mounting
- For indoor use
- Mounting with screws
Accessories:
Moisture sensor with time delay.
