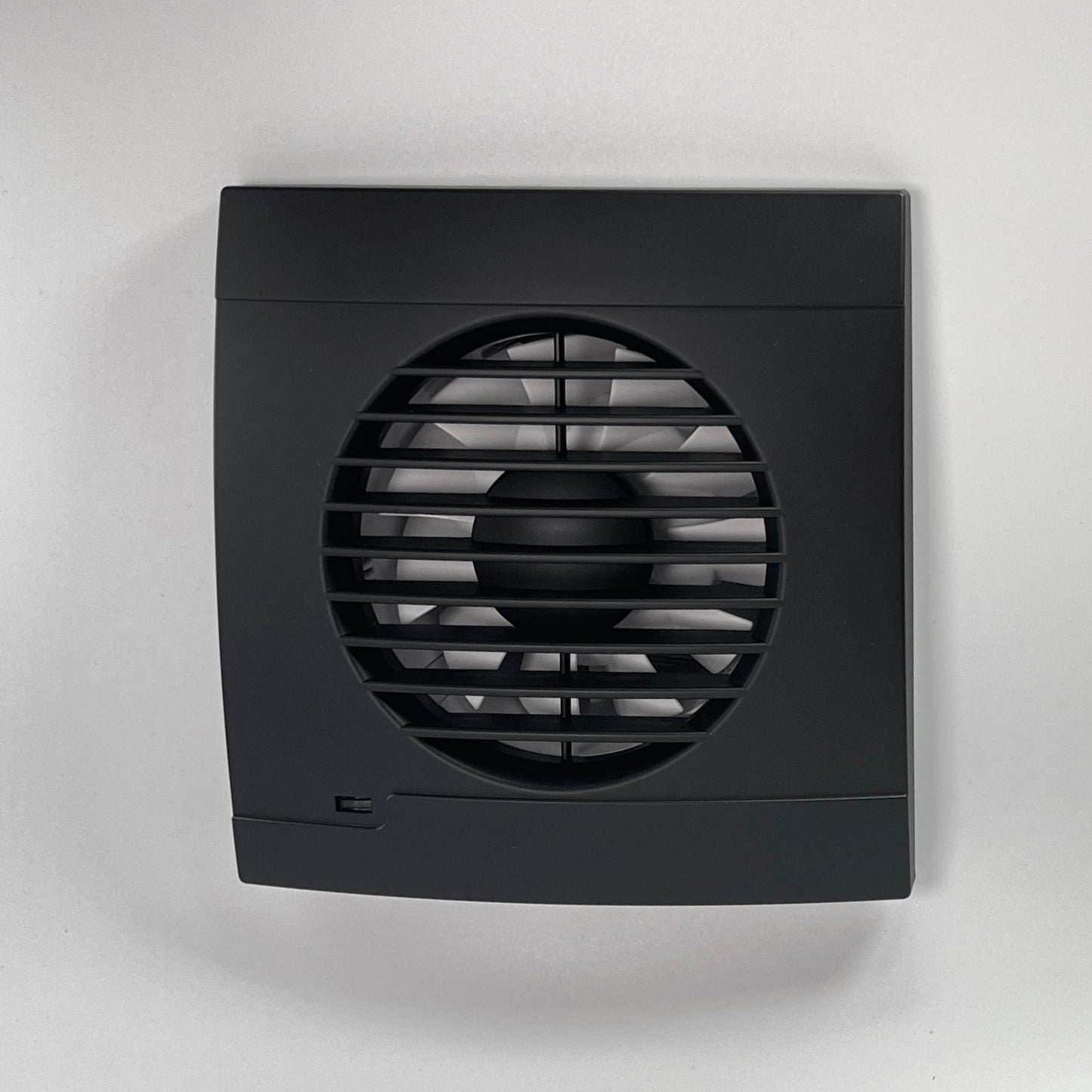

Bathroom fan Vulkan RS100HT Onyx
Bathroom fan Vulkan RS100HT Onyx
- Rated voltage: 230 V
- Colour: onyx
- Mains frequency: 50 Hz
- Power consumption: 19 W
- Air output: 120 m3/h
- Bearing type: sliding
- Degree of protection (IP): IP-X4
- Sound pressure level: 39.5 dB (A)
- Speed: 2550 rpm
- Nominal size: 100 mm
- Material: ABS/PP
- Mounting location: Wall
- Mounting type: surface mounted
- Fan weight: 0.49 kg
- A: 158 mm
- B: 158 mm
- C: 63 mm
- D: 98 mm
- E: 26 mm
- Mounting hole: Ø100 mm
Fans designed to assist ventilation in residential and commercial premises are characterised by quiet operation, high efficiency and reliability. They use high quality material, which ensures the durability of the device and also maintains aesthetic qualities.
The duct fan is an ideal solution for bathrooms and toilets. It is used to support gravitational ventilation and can be installed in rooms that have individual ventilation ducts, in residential buildings, collective dwellings and places of public use, with the exception of rooms where corrosive or explosive atmospheres may occur.
HT model - fan with humidity sensor. The HT system has all the functions of the T series fan, plus it is equipped with a humidity sensor that allows the fan to be activated if the set humidity threshold is exceeded. The fan automatically switches on when the air humidity in the vicinity of the fan reaches a pre-set level or when the W/WO (on/off) switch is activated.
Switching off takes place after a set delay time, calculated from the moment the required humidity level is reached in the room or the W/WO switch is switched off.
The humidistat fan ensures adequate air circulation in the room and maintains the correct humidity level.
Construction:
Fan made of high quality plastic.
Installation:
- Wall mounting
- Designed for indoor use
- Mounting with screws
Accessories:
- Moisture sensor with time delay
- LED indicator light
