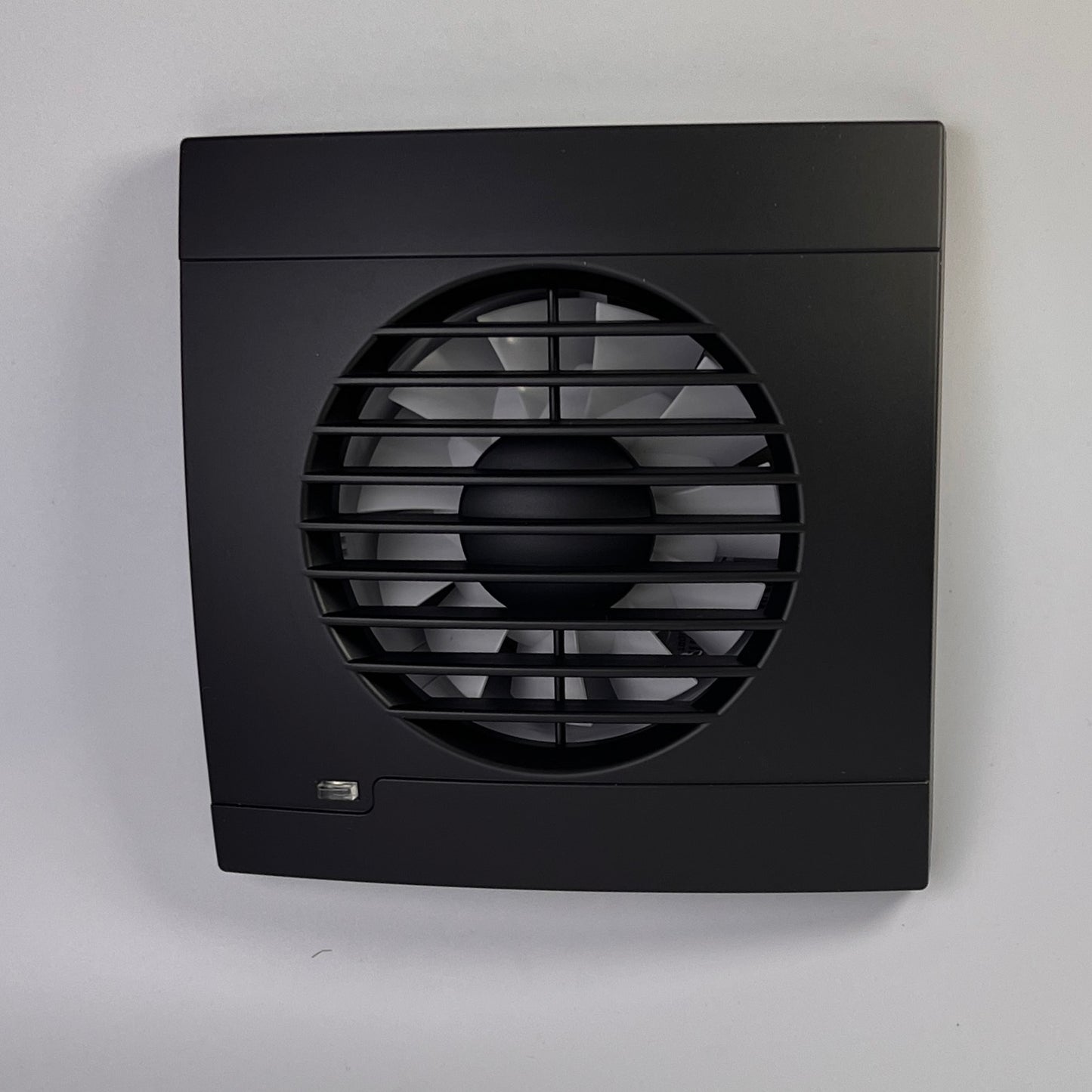

Bathroom fan Vulkan RK100T Onyx

Bathroom fan Vulkan RK100T Onyx

Regular price 126,00 zł PLN
Regular price Sale price 126,00 zł PLN
Sale Sold out
Tax included.
  • Rated voltage: 230 V
  • Colour: onyx
  • Mains frequency: 50 Hz
  • Power consumption: 19 W
  • Air output: 120 m3/h
  • Bearing type: ball bearing
  • Degree of protection (IP): IP-X4
  • Sound pressure level: 39.5 dB (A)
  • Speed: 2550 rpm
  • Nominal size: 100 mm
  • Material: ABS/PP
  • Place of installation: Wall/ceiling
  • Mounting type: surface-mounted
  • Fan weight: 0.51 kg
  • A: 158 mm
  • B: 158 mm
  • C: 63 mm
  • D: 98 mm
  • E: 26 mm
  • Mounting hole: Ø100 mm
Fans designed to assist ventilation in residential and commercial premises are characterised by quiet operation, high efficiency and reliability. They use a high-quality material that ensures the durability of the device as well as the maintenance of aesthetic qualities.
Duct fans are the ideal solution for bathrooms and toilets. They are used to support gravity ventilation and can be installed in rooms that have individual ventilation ducts. They can also be used in collective dwellings and public use buildings, except in rooms where corrosive or explosive atmospheres may be present.

Model T- (with timer) requires a controller to be connected to an electrical switch to control its switching. An existing ventilated room light switch can be used for this purpose. The time setting is made by setting the control system potentiometer to the required position. The delay time can be set between 0.5 and 30 minutes.

Construction:

The fan is made of high-quality plastic.

Installation:
  • Mounting can be on the wall or ceiling.
  • It is designed for indoor use.
  • Fixing is carried out with screws.
Equipment:
  • The fan is equipped with a timer plate with a timer
  • LED indicator light.
