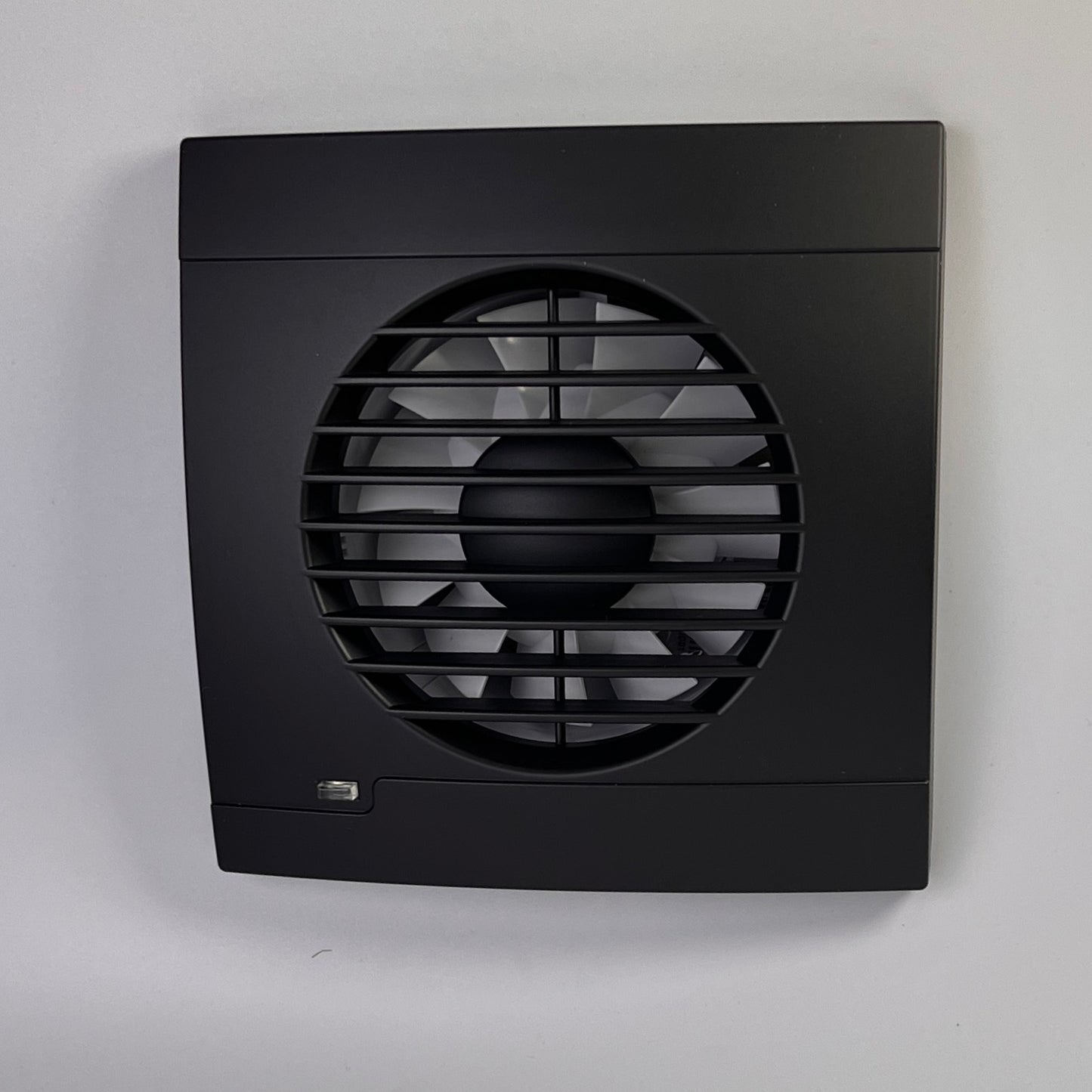

Bathroom fan Vulkan RK100HT Onyx
Bathroom fan Vulkan RK100HT Onyx
Couldn't load pickup availability
- Rated voltage: 230 V
- Colour: onyx
- Mains frequency: 50 Hz
- Power consumption: 19 W
- Air output: 120 m3/h
- Bearing type: ball bearing
- Degree of protection (IP): IP-X4
- Sound pressure level: 39.5 dB (A)
- Speed: 2550 rpm
- Nominal size: 100 mm
- Material: ABS/PP
- Place of installation: Wall/ceiling
- Mounting type: surface-mounted
- Fan weight: 0.51 kg
- A: 158 mm
- B: 158 mm
- C: 63 mm
- D: 98 mm
- E: 26 mm
- Mounting hole: Ø100 mm
Fans intended for supporting ventilation in residential and commercial premises are characterised by quiet operation, high efficiency and reliability. Made of high quality plastic, they ensure the durability of the device while maintaining aesthetic qualities.
The duct fan is an ideal solution for bathrooms and toilets. It is used to support gravitational ventilation and can be installed in rooms that have individual ventilation ducts, in residential buildings, collective dwellings and public places, except for rooms where corrosive or explosive atmospheres may occur.
Model HT- a fan with a humidity sensor is available. This unit has all the functions of the standard T-series fan, plus it is equipped with a humidity sensor that allows the fan to start automatically if the set humidity threshold is exceeded. The fan automatically switches on when the humidity in its surroundings reaches a certain level or when W/WO (on/off switch) is activated. It switches off after a specified delay time, calculated from the moment the required humidity level in the room is reached or the W/WO switch is switched off.
The humidistat fan ensures adequate air circulation in the room and maintains the correct humidity level.
Construction:
Fan made of high quality plastic.
Installation:
- Wall or ceiling mounting
- Designed for indoor use
- Mounting with screws
Accessories:
- Moisture sensor with time delay
- LED indicator light
