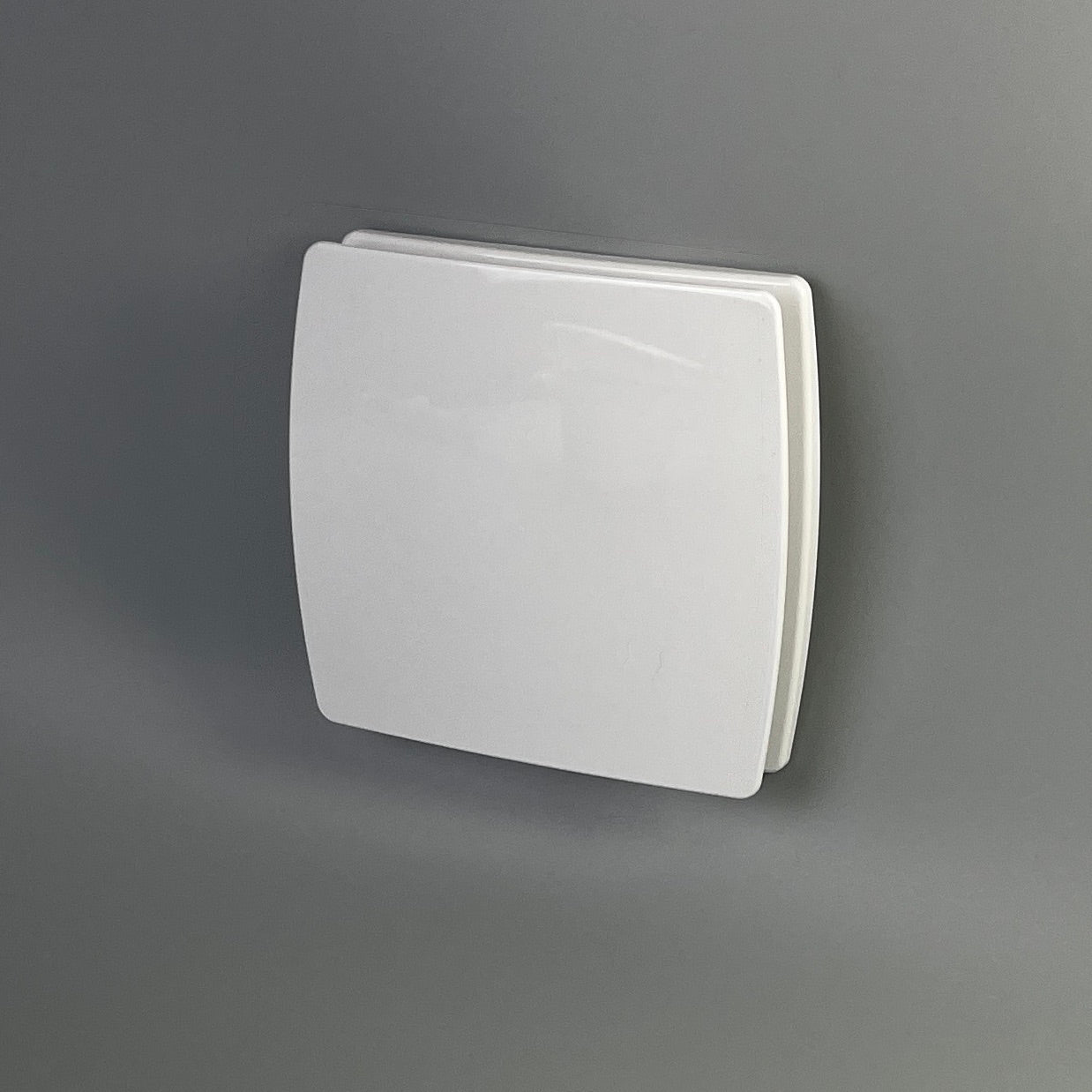

Bathroom fan Eol F10T
Bathroom fan Eol F10T
Regular price
94,00 zł PLN
Regular price
Sale price
94,00 zł PLN
Unit price
per
Tax included.
Couldn't load pickup availability
- Rated voltage: 230 V
- Colour: white
- Mains frequency: 50 Hz
- Power consumption: 19 W
- Air output: 100 m3/h
- Bearing type: sliding
- Degree of protection (IP): IP-X4
- Sound pressure level: 39.5 dB (A)
- Speed: 2550 rpm
- Nominal size: 100 mm
- Material: ABS/PP
- Mounting location: Wall
- Mounting type: surface-mounted
- Fan weight: 0.46 kg
- A: 141 mm
- B: 131 mm
- C: 84 mm
- D: 99 mm
- E: 29 mm
- Mounting hole: Ø100 mm
Fans intended for supporting ventilation in residential and commercial spaces. They are characterised by quiet operation and high efficiency and reliability. High-quality material ensures the durability of the device, but also maintains its aesthetic qualities.
The duct fan is an ideal solution for bathrooms and toilets. It is used to support gravitational ventilation and can be installed in rooms that have individual ventilation ducts, in residential buildings of collective residence and public use, with the exception of rooms where an atmosphere causing corrosion or explosion may occur.
Model T - fan with timer The control for switching on the fan requires the controller to be connected to an electrical switch. An existing light switch in the ventilated room can be used for this purpose. Timing is set by setting the control system potentiometer to the required position. The delay time can be set between 0.5 and 30 minutes.
Construction:
Fan made of high quality plastic
Installation:
- Wall mounting
- For indoor use
- Mounting with screws
Accessories:
Timer board
