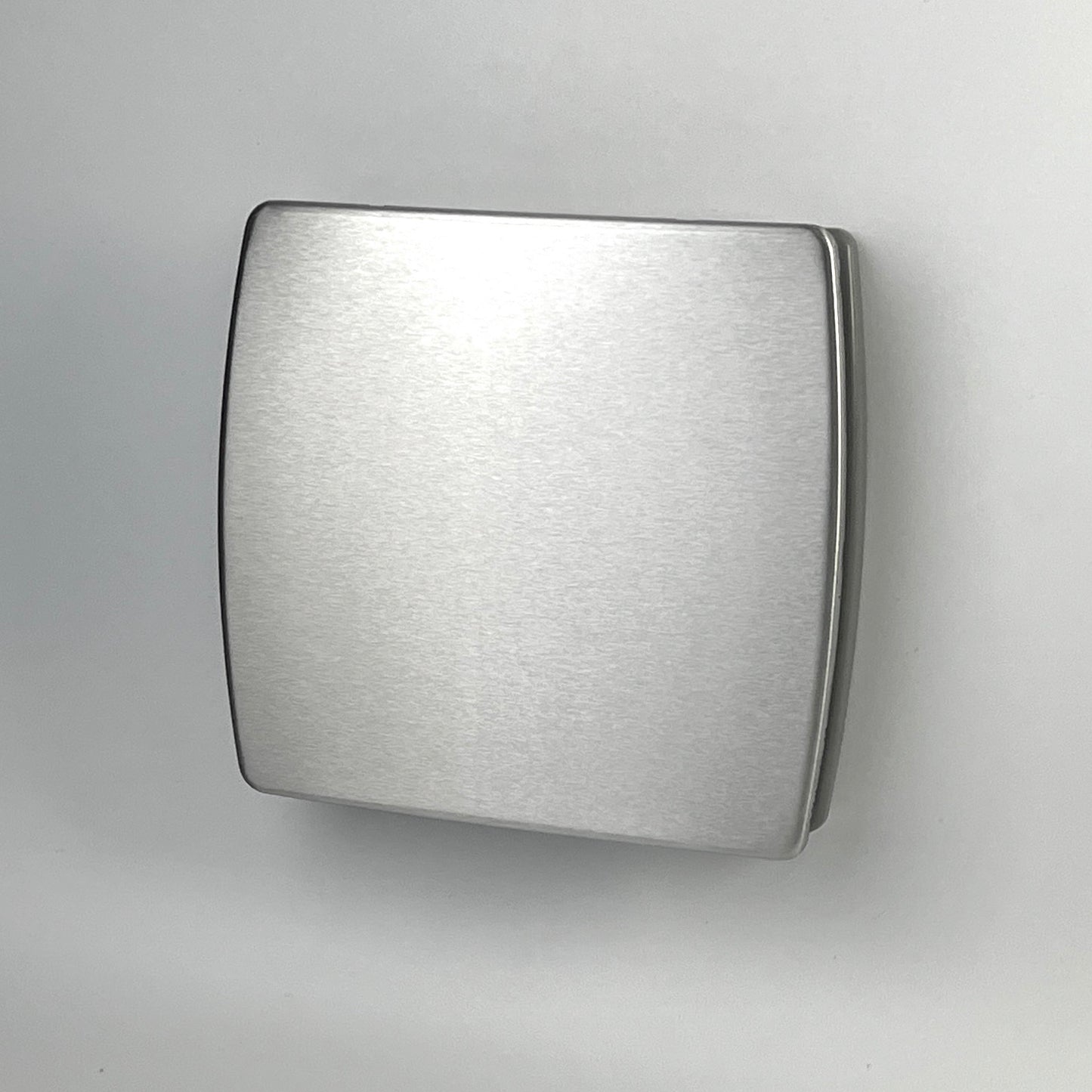

Bathroom fan Eol F10HTINOX

Bathroom fan Eol F10HTINOX

Regular price 140,00 zł PLN
Regular price Sale price 140,00 zł PLN
Sale Sold out
Tax included.

  • Rated voltage: 230 V
  • Colour: inox
  • Mains frequency: 50 Hz
  • Power consumption: 19 W
  • Air output: 100 m3/h
  • Bearing type: sliding
  • Degree of protection (IP): IP-X4
  • Sound pressure level: 39.5 dB (A)
  • Speed: 2550 rpm
  • Nominal size: 100 mm
  • Material: ABS/PP
  • Mounting location: Wall
  • Mountingtype: surface-mounted
  • Fan weight: 0.54 kg
  • A: 141 mm
  • B: 131 mm
  • C: 84 mm
  • D: 99 mm
  • E: 30 mm
  • Mounting hole: Ø100 mm

Fans intended for supporting ventilation in residential and commercial spaces. They are characterised by quiet operation and high efficiency and reliability. High-quality material ensures the durability of the device, but also maintains its aesthetic qualities.

The duct fan is an ideal solution for bathrooms and toilets. It is used to support gravitational ventilation and can be installed in rooms that have individual ventilation ducts, in residential buildings of collective residence and public use, with the exception of rooms where corrosive or explosive atmospheres may occur.

HT model - fan with humidity sensor. The HT system has all the functions of the T system, in addition it is equipped with a humidity sensor which allows the fan to be activated if the set humidity threshold is exceeded. The fan is switched on automatically when the air humidity in the vicinity of the fan reaches a pre-set level or when W/WO is activated. Switching off takes place after a set delay time, counted from the moment the required humidity level is reached in the room or the W/WO switch is turned off.
A device such as a fan with a humidistat provides us with adequate room circulation and, in addition, maintains the correct humidity level.

Construction:

Fan made of high quality plastic

Installation:
  • Wall mounting
  • For indoor use
  • Fixing with screws
Accessories:

Moisture sensor with time delay
