Elplast

Bathroom fan Eol F10BINOX

Bathroom fan Eol F10BINOX

105,00 zł PLN
105,00 zł PLN
Sale Sold out
Tax included.

  • Rated voltage: 230 V
  • Colour: inox
  • Mains frequency: 50 Hz
  • Power consumption: 19 W
  • Air output: 100 m3/h
  • Bearing type: sliding
  • Degree of protection (IP): IP-X4
  • Sound pressure level: 39.5 dB (A)
  • Speed: 2550 rpm
  • Nominal size: 100 mm
  • Material: ABS/PP
  • Mounting location: Wall
  • Mountingtype: surface-mounted
  • Fan weight: 0.54 kg

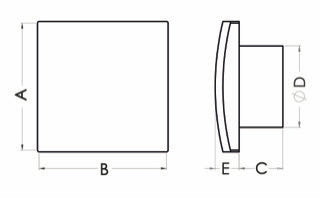

  • A: 141 mm
  • B: 131 mm
  • C: 84 mm
  • D: 99 mm
  • E: 30 mm
  • Mounting hole: Ø100 mm

Fans intended for supporting ventilation in residential and commercial spaces. They are characterised by quiet operation and high efficiency and reliability. High-quality material ensures the durability of the device, but also maintains its aesthetic qualities.

The duct fan is an ideal solution for bathrooms and toilets. It is used to support gravitational ventilation and can be installed in rooms that have individual ventilation ducts, in residential buildings of collective residence and public use, with the exception of rooms where a corrosive or explosive atmosphere may be present.

Construction:

Fan made of high quality plastic

Installation:
  • Wall mounting
  • For indoor use
  • Mounting with screws

View full details
