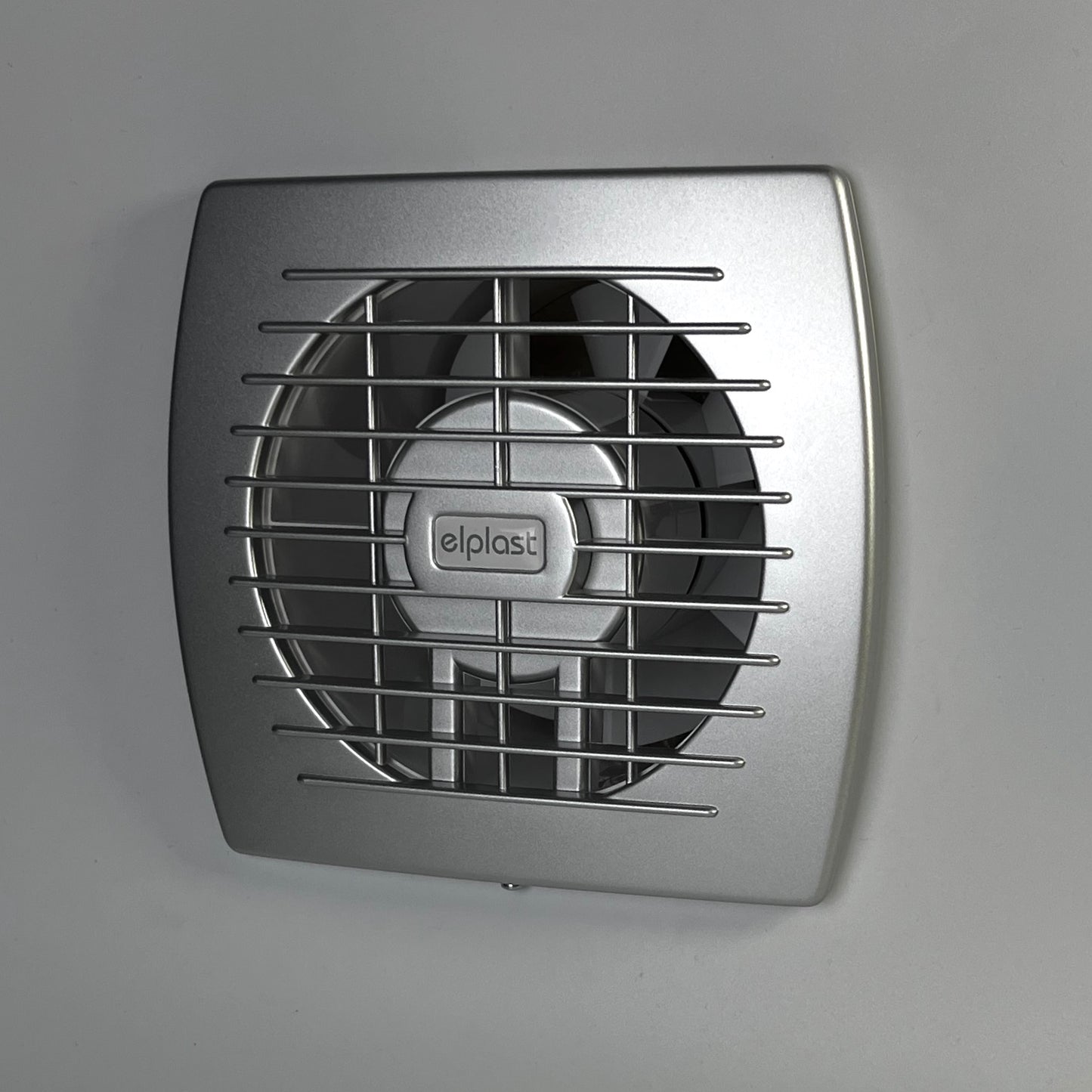

Bathroom fan Eol 120TSF
Bathroom fan Eol 120TSF
Regular price
123,00 zł PLN
Regular price
Sale price
123,00 zł PLN
Unit price
/
per
- Rated voltage: 230 V
-
Colour: silver
- Mains frequency: 50 Hz
- Power consumption: 20 W
- Air output: 150 m3/h
- Bearing type: sliding
- Degree of protection (IP): IP-X4
- Sound pressure level: 42 dB (A)
- Speed: 2360 rpm
- Nominal size: 120 mm
- Material: ABS/PP
- Place of installation: Wall
- Mounting type: surface mounted
- Fan weight: 0.53 kg
- A: 150 mm
- B: 162 mm
- C: 88 mm
- D: 119 mm
- E: 12 mm
- Mounting hole: Ø120 mm
Fans intended for supporting ventilation in residential and commercial spaces. They are characterised by quiet operation and high efficiency and reliability. High-quality material ensures the durability of the device, but also maintains its aesthetic qualities.
The duct fan is an ideal solution for bathrooms and toilets. It is used to support gravitational ventilation and can be installed in rooms that have individual ventilation ducts, in residential buildings of collective residence and public use, with the exception of rooms where an atmosphere causing corrosion or explosion may occur.
Model T - fan with timer The control for switching on the fan requires the controller to be connected to an electrical switch. An existing light switch in the ventilated room can be used for this purpose. Timing is set by setting the control system potentiometer to the required position. The delay time can be set between 0.5 and 30 minutes.
Construction:
Fan made of high quality plastic
Installation:
- Wall mounting
- For indoor use
- Mounting with screws
Accessories:
Timer board
