Bathroom fan Atol 120T
Bathroom fan Atol 120T
Couldn't load pickup availability
- Rated voltage: 230 V
- Colour: white
- Mains frequency: 50 Hz
- Power consumption: 20 W
- Air output: 150 m3/h
- Bearing type: sliding
- Degree of protection (IP): IP-X4
- Sound pressure level: 42 dB (A)
- Speed: 2360 rpm
- Nominal size: 120 mm
- Material: ABS/PP
- Place of installation: Wall
- Mounting type: surface mounted
- Fan weight:

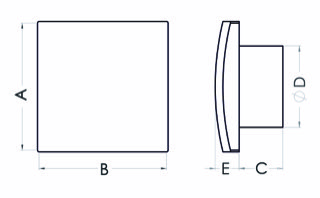

- A: 177 mm
- B: 177 mm
- C: 71 mm
- D: 119 mm
- E: 41 mm
- Mounting hole: Ø120 mm
Fans intended for supporting ventilation in residential and commercial premises are characterised by quiet operation, high efficiency and reliability. They are made of high quality plastic, which ensures the durability of the device and the maintenance of aesthetic values.
The duct fan is ideal for bathrooms and toilets. It is used to support gravitational ventilation and can be installed in rooms with individual ventilation ducts, in residential buildings of collective residence and public places, except for rooms with corrosive or explosive atmosphere.
Model T - fan with timer. Control of fan activation requires the controller to be connected to an electrical switch. An existing light switch of the ventilated room can be used for this purpose. The time setting can be adjusted by adjusting the control's potentiometer. The delay time can be adjusted between 0.5 and 30 minutes.
Construction:
Fan made of high-quality plastic.
Installation:
- Wall mounting
- Suitable for indoor use
- Mounting with screws
Accessories:
Timer board
