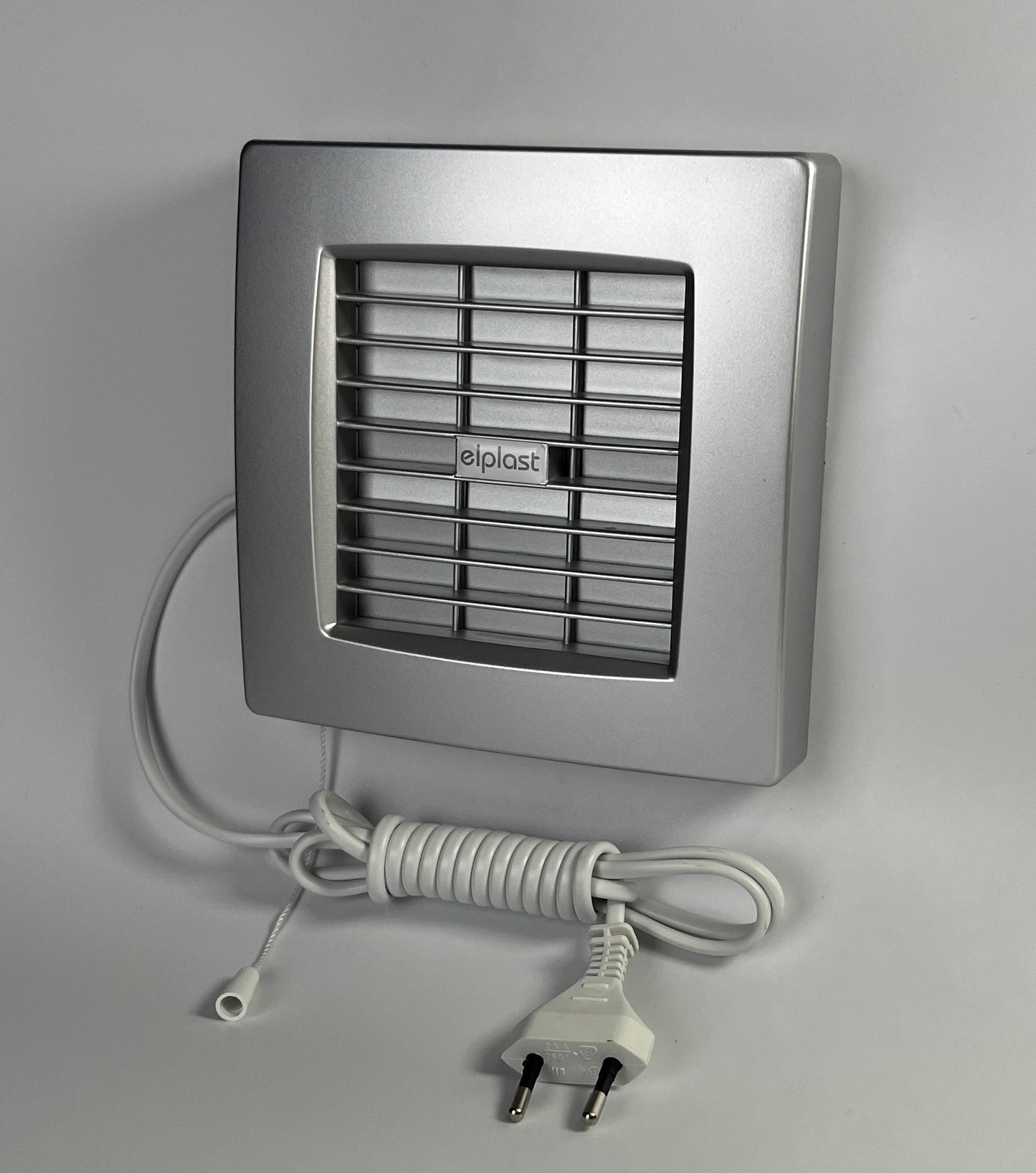

Bathroom fan Atol 100ASF
Bathroom fan Atol 100ASF
Couldn't load pickup availability
- Rated voltage: 230 V
- Colour: silver
- Mains frequency: 50 Hz
- Power consumption: 19 W
- Air output: 100 m3/h
- Bearing type: sliding
- Degree of protection (IP): IP-X4
- Sound pressure level: 39.5 dB (A)
- Speed: 2550 rpm
- Nominal size: 100 mm
- Material: ABS/PP
- Mounting location: Wall
- Mounting type: surface-mounted
- Fan weight: 0.59 kg
- A: 155 mm
- B: 155 mm
- C: 66 mm
- D: 99 mm
- E: 30 mm
- Mounting hole: Ø100 mm
Fans are designed to support ventilation in residential and commercial premises. They are characterised by quiet operation, high efficiency and reliability. Made of high-quality material, they ensure the durability of the device and also retain their aesthetic qualities.
The duct fan is an ideal solution for bathrooms and toilets. It is used to support gravitational ventilation and can be installed in rooms with individual ventilation ducts, in residential buildings, collective residence and public use, with the exception of rooms where an atmosphere causing corrosion or explosion may occur.
The fan is available in the A version, which means that it has an automatic shutter. When the fan is activated, the louvre opens fully in approximately 30 seconds. When the louvre is in the fully open state, the time for the louvre to close completely after the fan is switched off is approximately 90 seconds.
Construction:
The fan is made of high-quality plastic
Installation:
- Wall mounting
- Suitable for indoor use
- Mounting with screws
Accessories:
- 1.9 m cable with plug
- Pull switch
- Automatic shutter
