Elplast

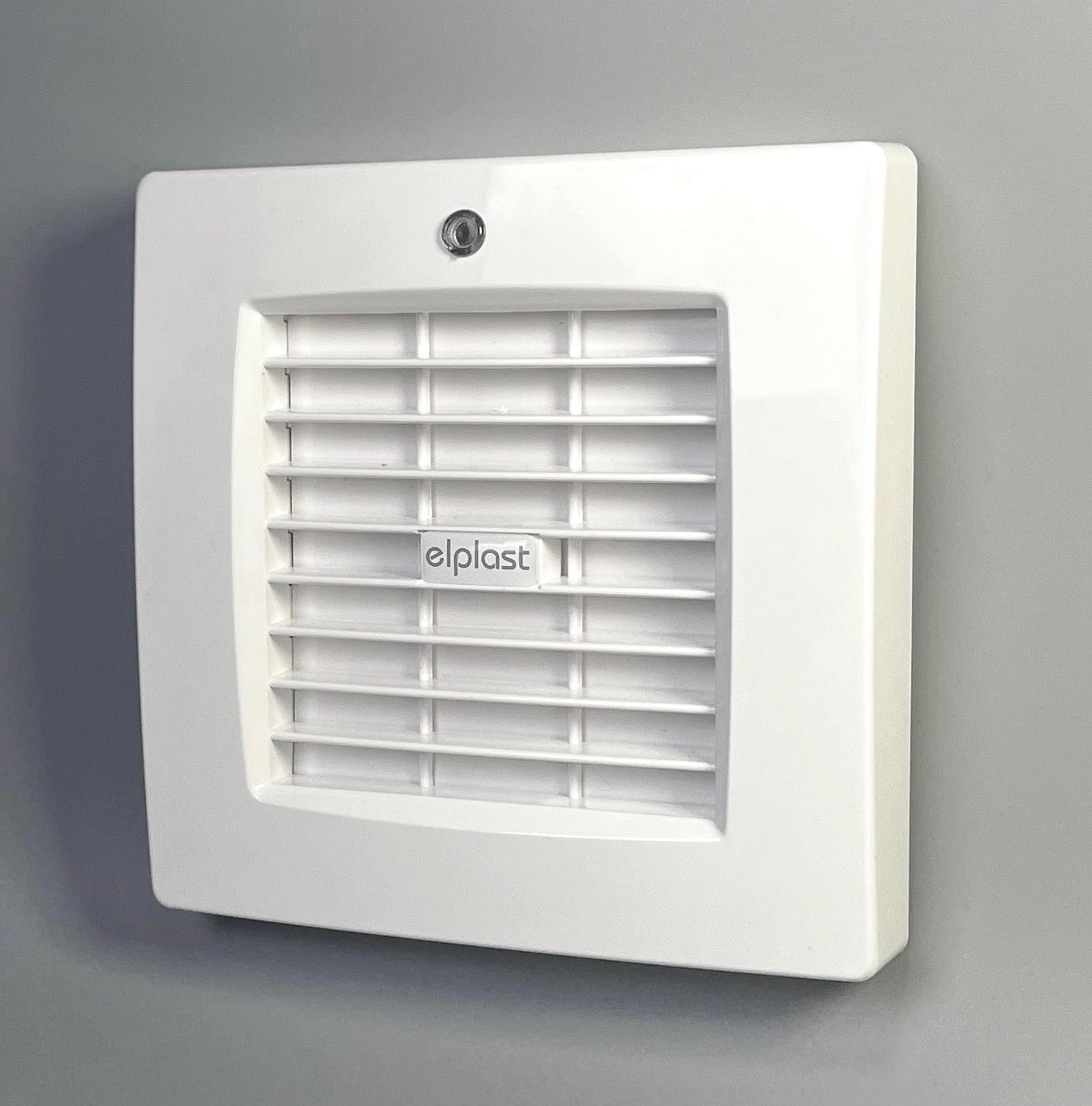

Bathroom fan Atol 100AFT

Bathroom fan Atol 100AFT

Regular price 148,00 zł PLN
Regular price Sale price 148,00 zł PLN
Sale Sold out
Tax included.

  • Rated voltage: 230 V
  • Colour: white
  • Mains frequency: 50 Hz
  • Power consumption: 19 W
  • Air output: 100 m3/h
  • Bearing type: sliding
  • Degree of protection (IP): IP-X4
  • Sound pressure level: 39.5 dB (A)
  • Speed: 2550 rpm
  • Nominal size: 100 mm
  • Material: ABS/PP
  • Mounting location: Wall
  • Mounting type: surface mounted
  • Fan weight: 0.53 kg
  • A: 155 mm
  • B: 155 mm
  • C: 66 mm
  • D: 99 mm
  • E: 30 mm
  • Mounting hole: Ø100 mm

Fans designed to assist ventilation in residential and commercial premises are characterised by quiet operation, high efficiency and reliability. They use high quality material, which ensures the durability of the device and also maintains aesthetic qualities.

The duct fan is an ideal solution for bathrooms and toilets. It is used to support gravitational ventilation and can be installed in rooms that have individual ventilation ducts, in residential buildings of collective residence and public use, with the exception of rooms where corrosive or explosive atmospheres may occur.

FT model - fan with photocell. The fan is switched on when there is a change of light intensity in the room where the fan is installed or when the switch is turned on.
The fan is also available in the A version, which means that it is equipped with an automatic shutter. When the fan is switched on, it takes approximately 30 seconds for the louvre to fully open. When the louvre is in full opening, the time for the louvre to close completely after the fan is switched off is approximately 90 seconds.

Construction:

Fan made of high quality plastic.

Installation:
  • Wall mounting
  • For indoor use
  • Mounting with screws
Accessories:
  • Photocell
  • Automatic shutter
