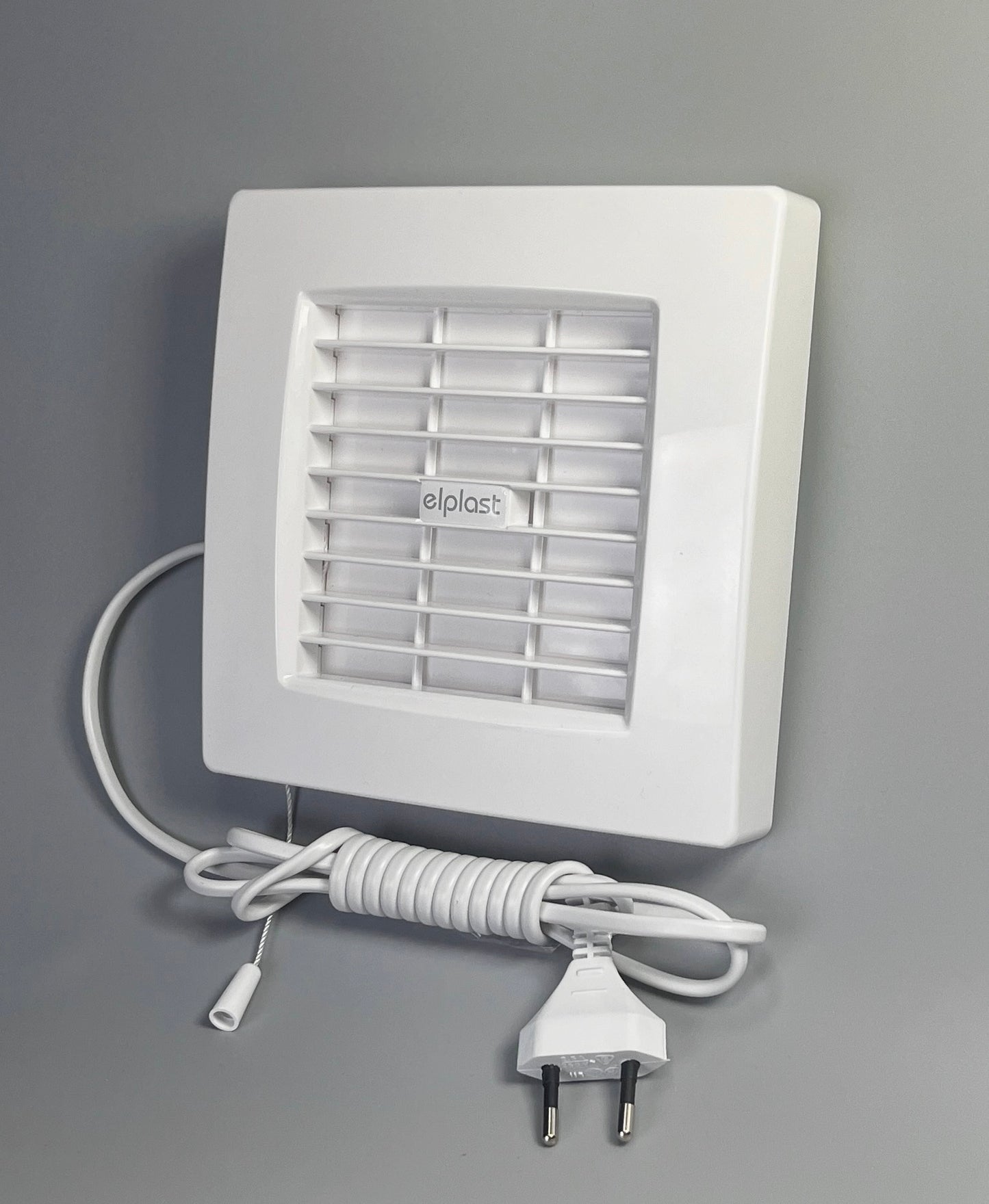

Bathroom fan Atol 100A
Bathroom fan Atol 100A
Couldn't load pickup availability
- Rated voltage: 230 V
- Colour: white
- Mains frequency: 50 Hz
- Power consumption: 19 W
- Air output: 100 m3/h
- Bearing type: sliding
- Degree of protection (IP): IP-X4
- Sound pressure level: 39.5 dB (A)
- Speed: 2550 rpm
- Nominal size: 100 mm
- Material: ABS/PP
- Mounting location: Wall
- Mounting type: surface-mounted
- Fan weight: 0.59 kg
- A: 155 mm
- B: 155 mm
- C: 66 mm
- D: 99 mm
- E: 30 mm
- Mounting hole: Ø100 mm
Fans designed to assist ventilation in residential and commercial premises are characterised by quiet operation, high efficiency and reliability. They use high quality material, which ensures the durability of the device and also maintains its aesthetic qualities.
The duct fan is an ideal solution for bathrooms and toilets. It is used to support gravitational ventilation and can be installed in rooms that have individual ventilation ducts, in residential buildings of collective residence and public use, with the exception of rooms where corrosive or explosive atmospheres may occur.
Model A- which means that it is equipped with an automatic shutter. When the fan is activated, the time taken for the louvre to fully open is approximately 30 seconds. When the louvre is fully open, the time for the louvre to close completely when the fan is switched off is approximately 90 seconds.
Construction:
Fan made of high quality plastic.
Installation:
- Wall mounting
- For indoor use
- Mounting with screws
Accessories:
- 1.9 m cable with plug
- Pull switch
- Automatic shutter
