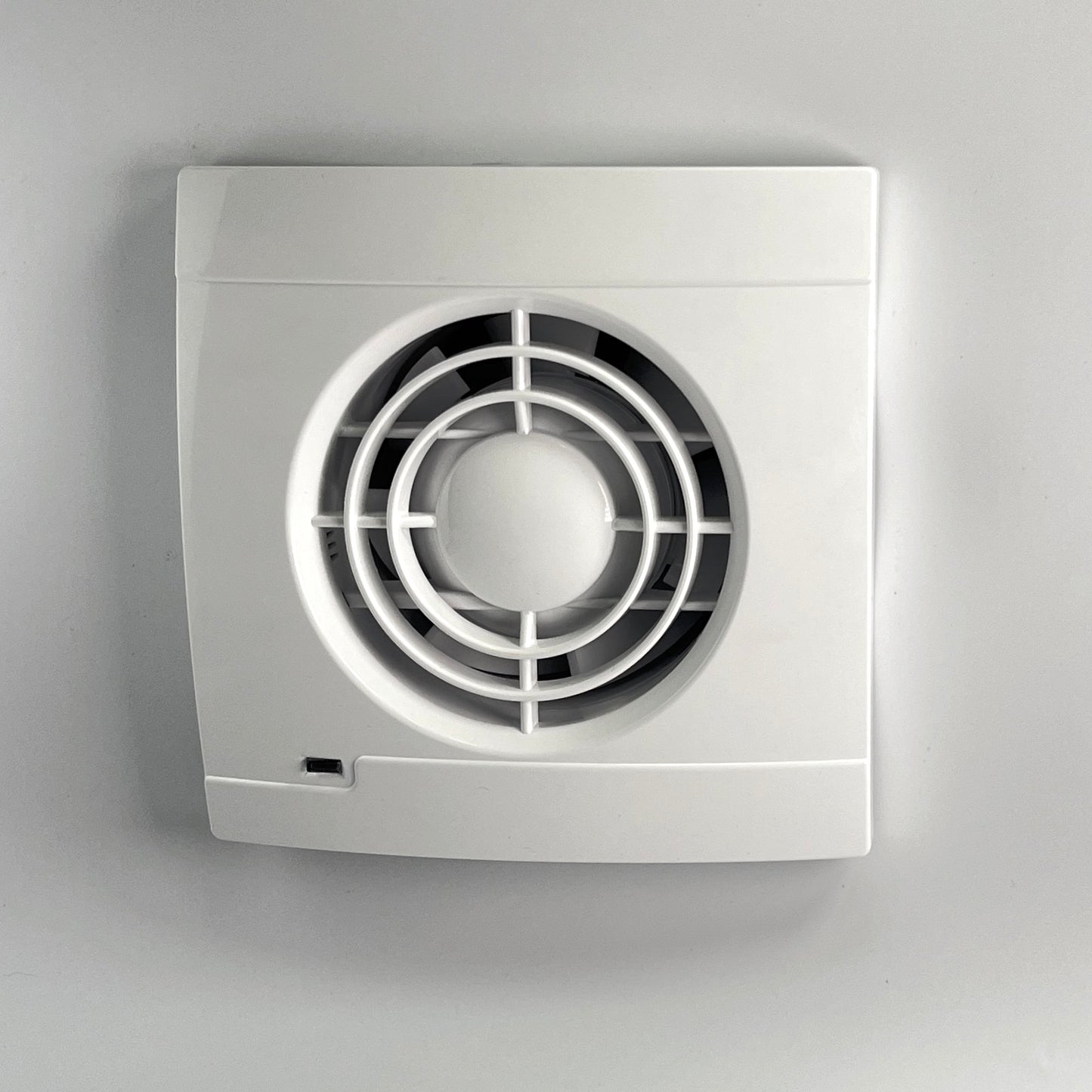

Bathroom fan Aero VK100T+
Bathroom fan Aero VK100T+
Couldn't load pickup availability
- Rated voltage: 230 V
- Colour: white
- Mains frequency: 50 Hz
- Power consumption: 19 W
- Air output: 100 m3/h
- Bearing type: ball bearing
- Degree of protection (IP): IP-X4
- Sound pressure level: 39.5 dB (A)
- Speed: 2550 rpm
- Nominal size: 100 mm
- Material: ABS/PP
- Place of installation: Wall/ceiling
- Mountingtype: surface-mounted
- Fan weight: 0.48 kg
- A: 158 mm
- B: 158 mm
- C: 61 mm
- D: 99 mm
- E: 25 mm
- Mounting hole: Ø100 mm
Fans intended for supporting ventilation in residential and commercial premises are characterised by quiet operation, high efficiency and reliability. Made of high-quality material, they ensure the durability of the device and the maintenance of aesthetic values.
The duct fan is an ideal solution for bathrooms and toilets to support gravitational ventilation. It can be installed in rooms with individual ventilation ducts, in residential and public buildings, except for rooms where corrosive or explosive atmospheres may occur.
TheT- model with timer allows control of fan activation by connecting the controller to an electrical switch. An existing light switch of the ventilated room can be used for this purpose. The fan switch-on delay time is adjustable using the control system's potentiometer, allowing the time to be set between 0.5 and 30 minutes.
Construction:
The fan is made of high-quality plastic.
Installation:
- Mounting on the wall or ceiling
- It is designed for indoor use
- It is fixed with screws.
Accessories:
- Timer board
- LED indicator light
- Non-return flap
