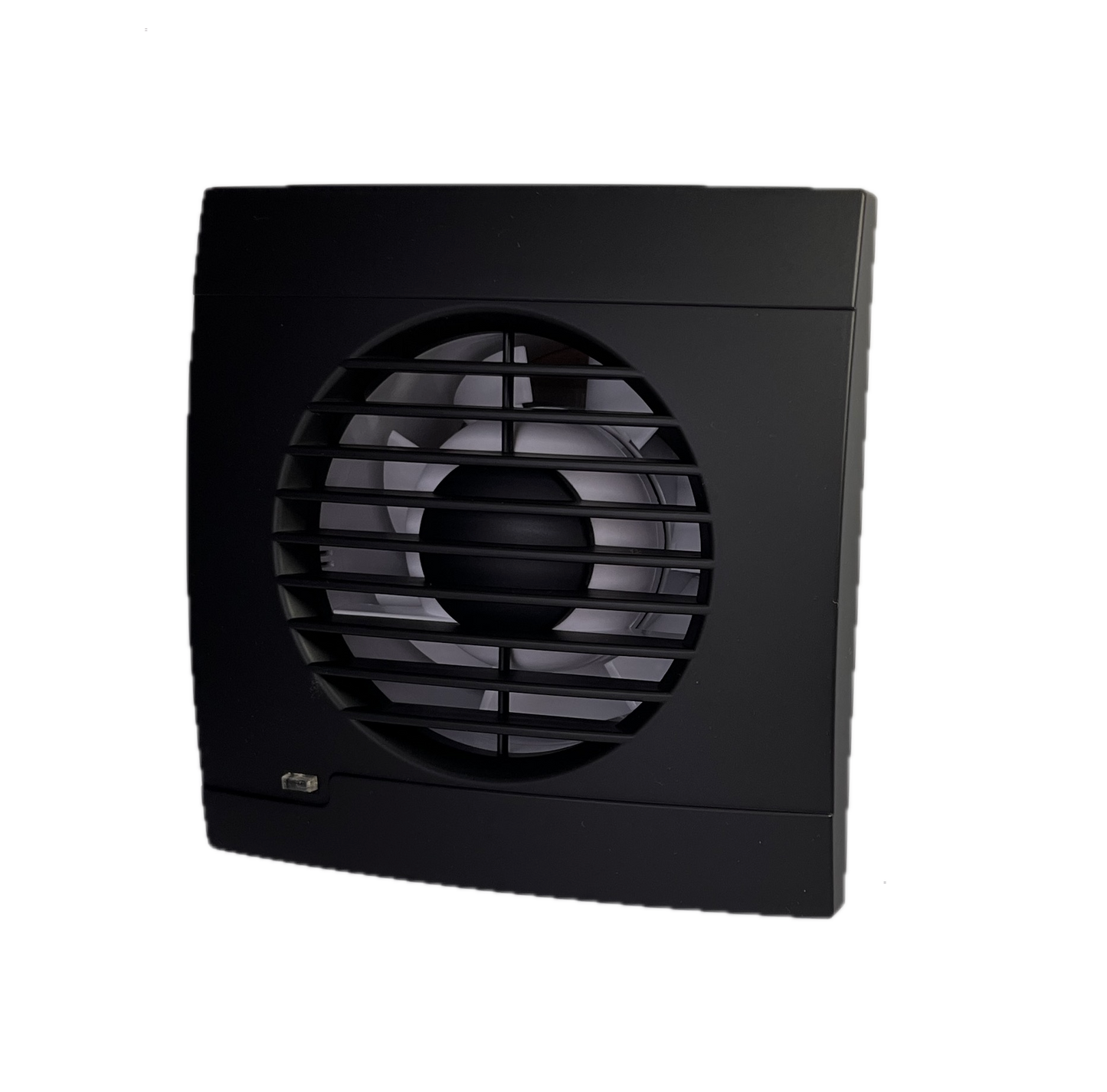

Bathroom fan Aero RS100T+ Onyx

Bathroom fan Aero RS100T+ Onyx

Regular price 111,00 zł PLN
Regular price Sale price 111,00 zł PLN
Sale Sold out
Tax included.

  • Rated voltage: 230 V
  • Colour: white
  • Mains frequency: 50 Hz
  • Power consumption: 19 W
  • Air output: 100 m3/h
  • Bearing type: sliding
  • Degree of protection (IP): IP-X4
  • Sound pressure level: 39.5 dB (A)
  • Speed: 2550 rpm
  • Nominal size: 100 mm
  • Material: ABS/PP
  • Mounting location: Wall
  • Mounting type: surface mounted
  • Fan weight: 0.48 kg
  • A: 158 mm
  • B: 158 mm
  • C: 61 mm
  • D: 99 mm
  • E: 26 mm
  • Mounting hole: Ø100 mm

Fans are designed to support ventilation in residential and commercial premises. They are characterised by quiet operation, high efficiency and reliability. They are made of high quality material, which ensures the durability of the device and the maintenance of aesthetic values.

The duct fan is an ideal solution for bathrooms and toilets. It is used to support gravitational ventilation and can be installed in rooms that have individual ventilation ducts, in collective residential buildings and in places of public use, with the exception of rooms with a corrosive or explosive atmosphere.

TheT- model with timer requires the controller to be connected to an existing electrical switch. An existing light switch in the ventilated room can be used. The fan activation delay time is adjustable by a potentiometer in the control and can be set between 0.5 and 30 minutes.

Construction:

Fan made of high quality plastic.

Installation:
  • Wall mounting
  • Suitable for indoor use
  • Mounting with screws
Accessories:
  • Timer board
  • LED flap
  • Back flap
