Elplast

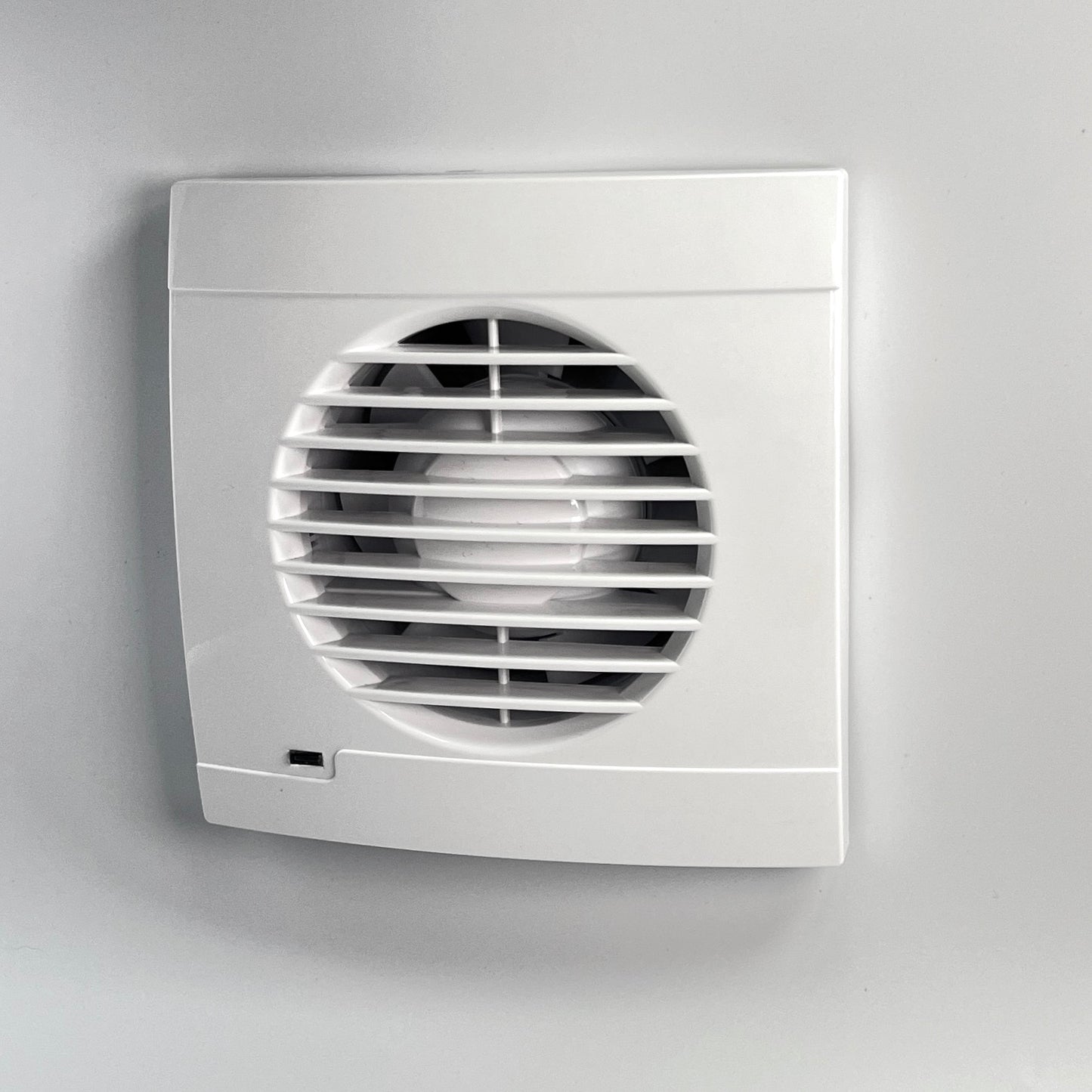

Bathroom fan Aero RS100HT+
Bathroom fan Aero RS100HT+
Couldn't load pickup availability
- Rated voltage: 230 V
- Colour: white
- Mains frequency: 50 Hz
- Power consumption: 19 W
- Air output: 100 m3/h
- Bearing type: sliding
- Degree of protection (IP): IP-X4
- Sound pressure level: 39.5 dB (A)
- Speed: 2550 rpm
- Nominal size: 100 mm
- Material: ABS/PP
- Mounting location: Wall
- Mounting type: surface mounted
- Fan weight: 0.48 kg
- A: 158 mm
- B: 158 mm
- C: 61 mm
- D: 99 mm
- E: 26 mm
- Mounting hole: Ø100 mm
Fans are designed to support ventilation in residential and commercial premises. They are characterised by quiet operation, high efficiency and reliability. They are made of high quality material, which ensures the durability of the device and the maintenance of aesthetic values.
The duct fan is an ideal solution for bathrooms and toilets. It is used to support gravity ventilation and can be installed in rooms that have individual ventilation ducts, in collective housing and in public use areas, with the exception of rooms with a corrosive or explosive atmosphere.
The HT- model, in addition to the T-fan function, is equipped with a humidity sensor that allows the fan to be automatically activated when the set humidity threshold is exceeded. The fan will be switched on automatically when the humidity of the air in the vicinity of the fan reaches the set level or when W/WO is switched on. It will switch off after a set delay time, calculated from the moment the required humidity level in the room is reached or the W/WO switch is switched off.
The device, which is a fan with a humidistat, ensures adequate air circulation in the room and maintains the correct humidity level.
Construction:
Fan made of high quality plastic.
Installation:
- Wall mounting
- Designed for indoor use
- Mounting with screws
Accessories:
- Moisture sensor with time delay
- LED indicator light
- Non-return flap
