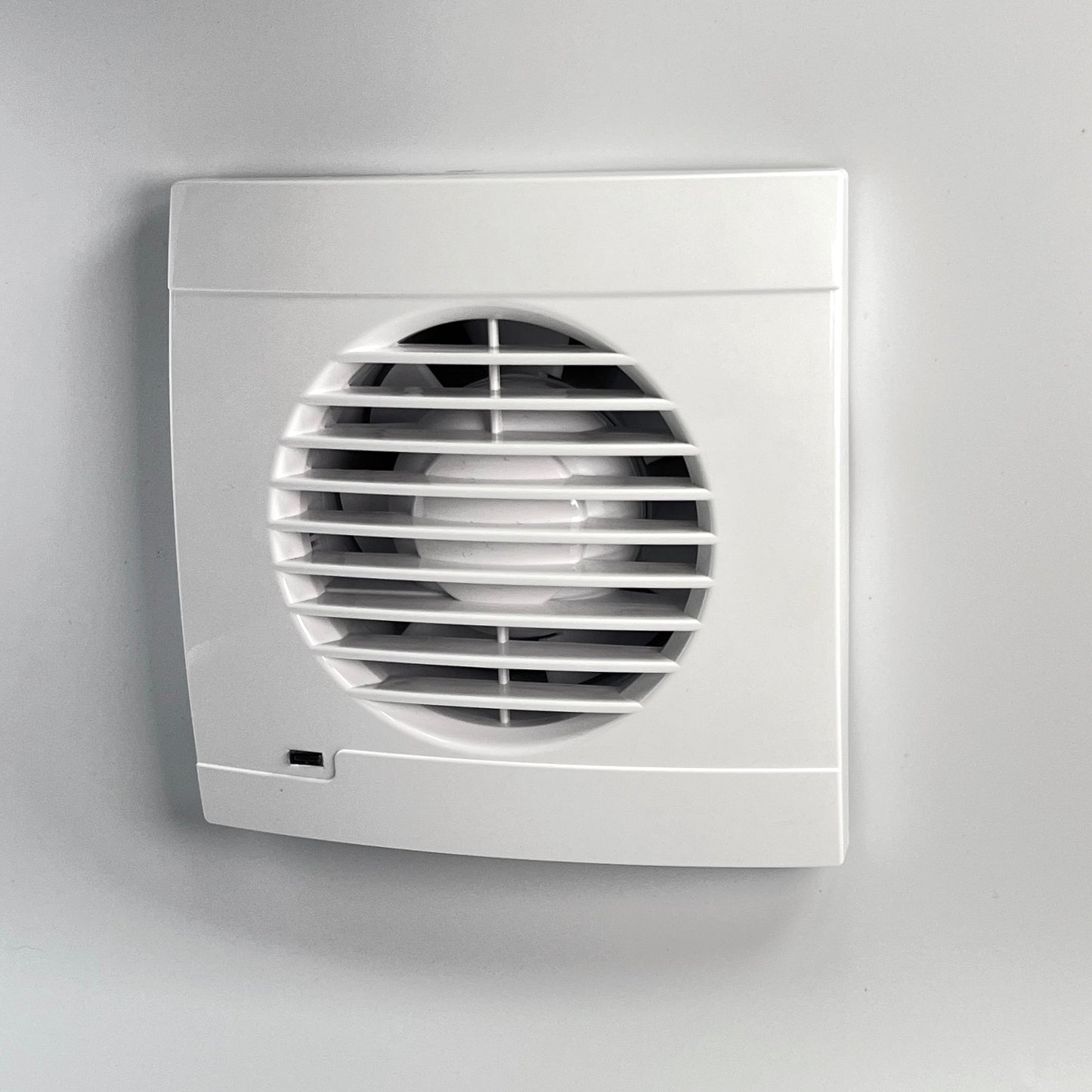

Bathroom fan Aero RS100HT
Bathroom fan Aero RS100HT
- Rated voltage: 230 V
- Colour: white
- Mains frequency: 50 Hz
- Power consumption: 19 W
- Air output: 100 m3/h
- Bearing type: sliding
- Degree of protection (IP): IP-X4
- Sound pressure level: 39.5 dB (A)
- Speed: 2550 rpm
- Nominal size: 100 mm
- Material: ABS/PP
- Mounting location: Wall
- Mounting type: surface-mounted
- Fan weight: 0.46 kg
- A: 158 mm
- B: 158 mm
- C: 53 mm
- D: 99 mm
- E: 26 mm
- Mounting hole: Ø100 mm
Fans are designed to support ventilation in residential and commercial premises. They are characterised by quiet operation, high efficiency and reliability. They are made of high quality material, which ensures the durability of the device and an aesthetic appearance.
The duct fan is an ideal solution for bathrooms and toilets. It is used to support gravity ventilation and can be installed in rooms that have individual ventilation ducts, in collective housing and in public use areas, except in rooms where there is a risk of corrosion or explosion.
The HT- model, in addition to the T-fan function, also has a humidity sensor, which allows the fan to be automatically activated when the set humidity level is exceeded. The fan will be switched on automatically when the humidity around the fan reaches a preset level or when W/WO is activated. It is switched off after a set delay time after the required humidity level in the room is reached or the W/WO switch is switched off.
A device such as a humidistat fan ensures that the air in the room is properly circulated and that the correct humidity level is maintained.
Construction:
Fan made of high-quality plastic.
Installation:
- Wall mounting
- Designed for indoor use
- Mounting with screws
Accessories:
- Moisture sensor with time delay
- LED indicator light
