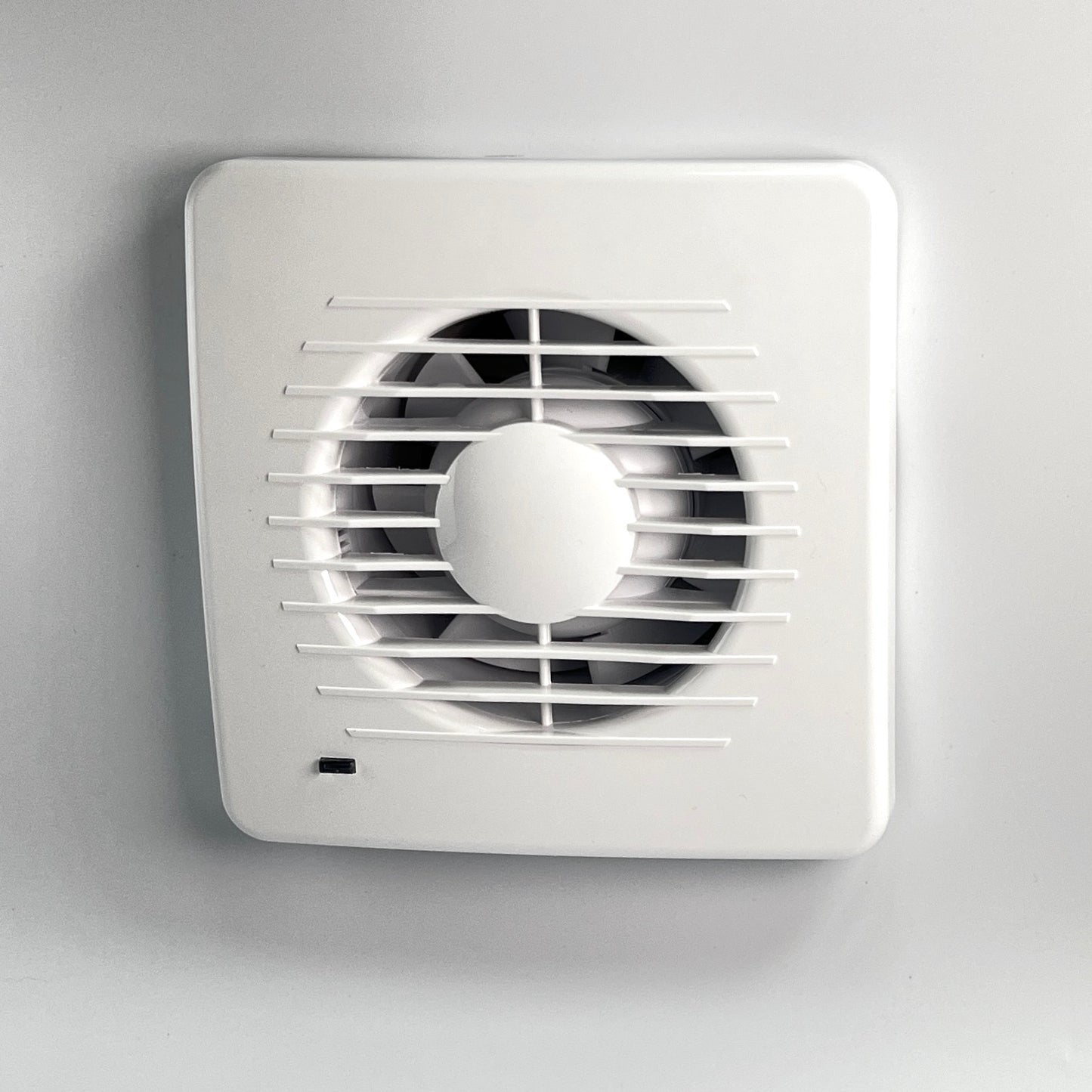

Bathroom fan Aero DK100T+
Bathroom fan Aero DK100T+
Regular price
94,00 zł PLN
Regular price
Sale price
94,00 zł PLN
Unit price
per
Tax included.
Couldn't load pickup availability
- Rated voltage: 230 V
- Colour: white
- Mains frequency: 50 Hz
- Power consumption: 19 W
- Air output: 100 m3/h
- Bearing type: ball bearing
- Degree of protection (IP): IP-X4
- Sound pressure level: 39.5 dB (A)
- Speed: 2550 rpm
- Nominal size: 100 mm
- Material: ABS/PP
- Installation position: wall/ceiling
- Mounting type: Surface-mounted
- Weight: 0.48 kg
- A: 158 mm
- B: 159 mm
- C: 61 mm
- D: 99 mm
- E: 21 mm
- Mounting hole: Ø100 mm
Fans designed for ventilation in residential and commercial premises are characterised by quiet operation, high efficiency and reliability. Made of high quality plastic, they ensure durability and an aesthetic appearance.
The duct fan is ideal for bathrooms and toilets. It supports gravitational ventilation and can be installed in rooms with individual ventilation ducts in residential buildings and public use, except in areas with a corrosive or explosive atmosphere.
Model T - fan with timer. Control of its activation requires the connection of a controller to an electrical switch. An existing light switch in the ventilated room can be used for this purpose. The delay time can be set from 0.5 to 30 minutes by adjusting a potentiometer on the control.
Construction:
Fan made of high-quality plastic.
Installation:
- Wall or ceiling mounting.
- Suitable for indoor use.
- Mounting by means of screws.
Accessories:
- Circuit board with timer.
- LED indicator light.
- Non-return flap.
