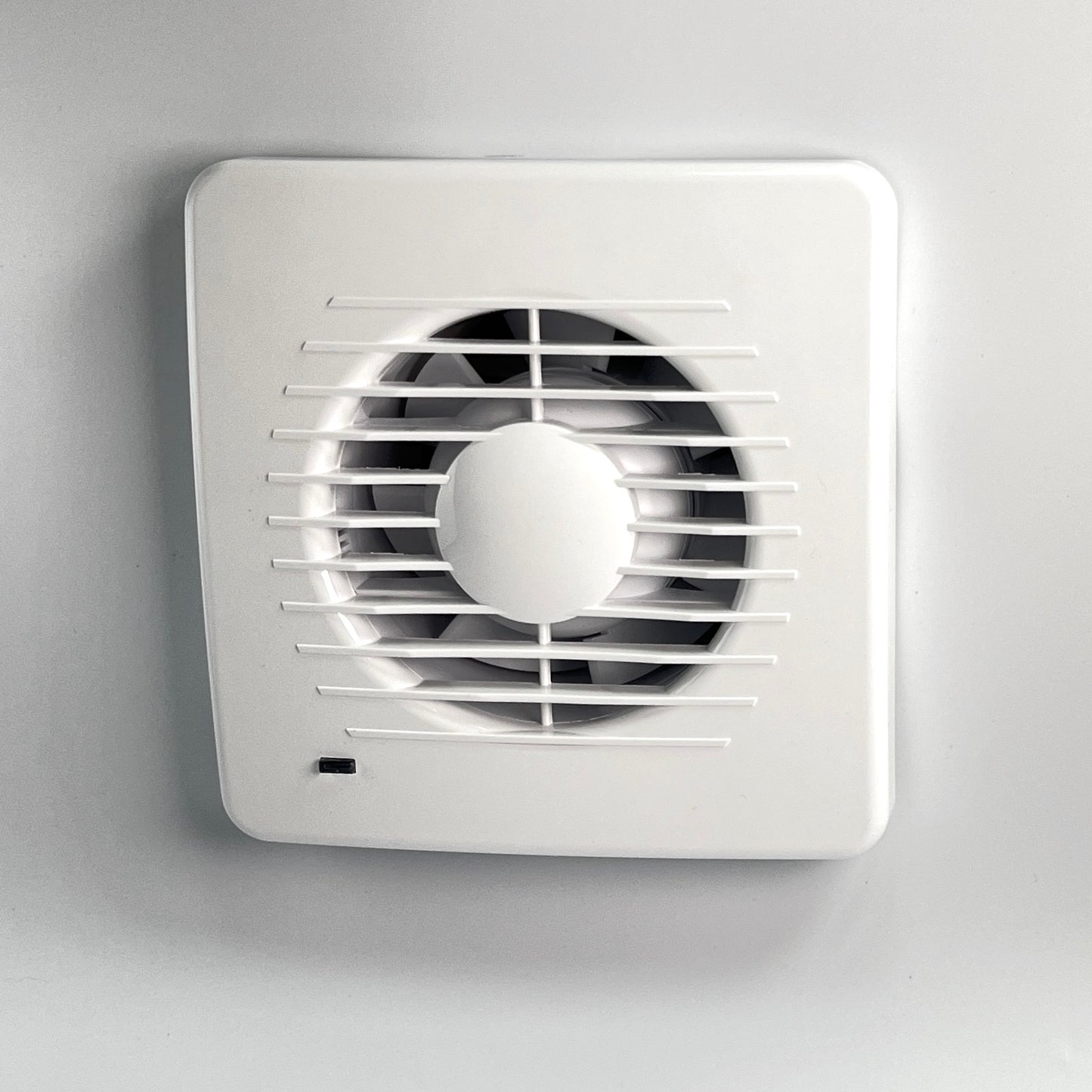

Bathroom fan Aero DK100HT+
Bathroom fan Aero DK100HT+
Couldn't load pickup availability
- Rated voltage: 230 V
- Colour: white
- Mains frequency: 50 Hz
- Power consumption: 19 W
- Air output: 100 m3/h
- Bearing type: ball bearing
- Degree of protection (IP): IP-X4
- Sound pressure level: 39.5 dB (A)
- Speed: 2550 rpm
- Nominal size: 100 mm
- Material: ABS/PP
- Installation position: wall/ceiling
- Mounting type: surface-mounted
- Fan weight: 0.48 kg
- A: 158 mm
- B: 159 mm
- C: 61 mm
- D: 99 mm
- E: 21 mm
- Mounting hole: Ø100 mm
Fans for ventilation in residential and commercial premises are quiet, efficient and reliable. They are made of high quality plastic for durability and aesthetics.
The duct fan is ideal for bathrooms and toilets. It supports gravitational ventilation and can be installed in rooms with individual ventilation ducts in collective housing and public use buildings, except where corrosive or explosive atmospheres are present.
TheHT model - fan with humidity sensor has all the functions of the T fan and is additionally equipped with a humidity sensor, which activates the fan when it exceeds a preset humidity threshold. The fan automatically switches off after a preset delay time, calculated from the moment the required humidity level in the room is reached or the switch is turned off.
The hygrostatic fan ensures adequate air circulation and maintenance of the correct humidity level.
Construction:
- Fan made of high quality plastic.
Installation:
- Wall or ceiling mounting.
- Designed for indoor use.
- Mounting by means of screws.
Equipment:
- Moisture sensor with time delay.
- LED indicator light.
- Non-return flap.
