Elplast

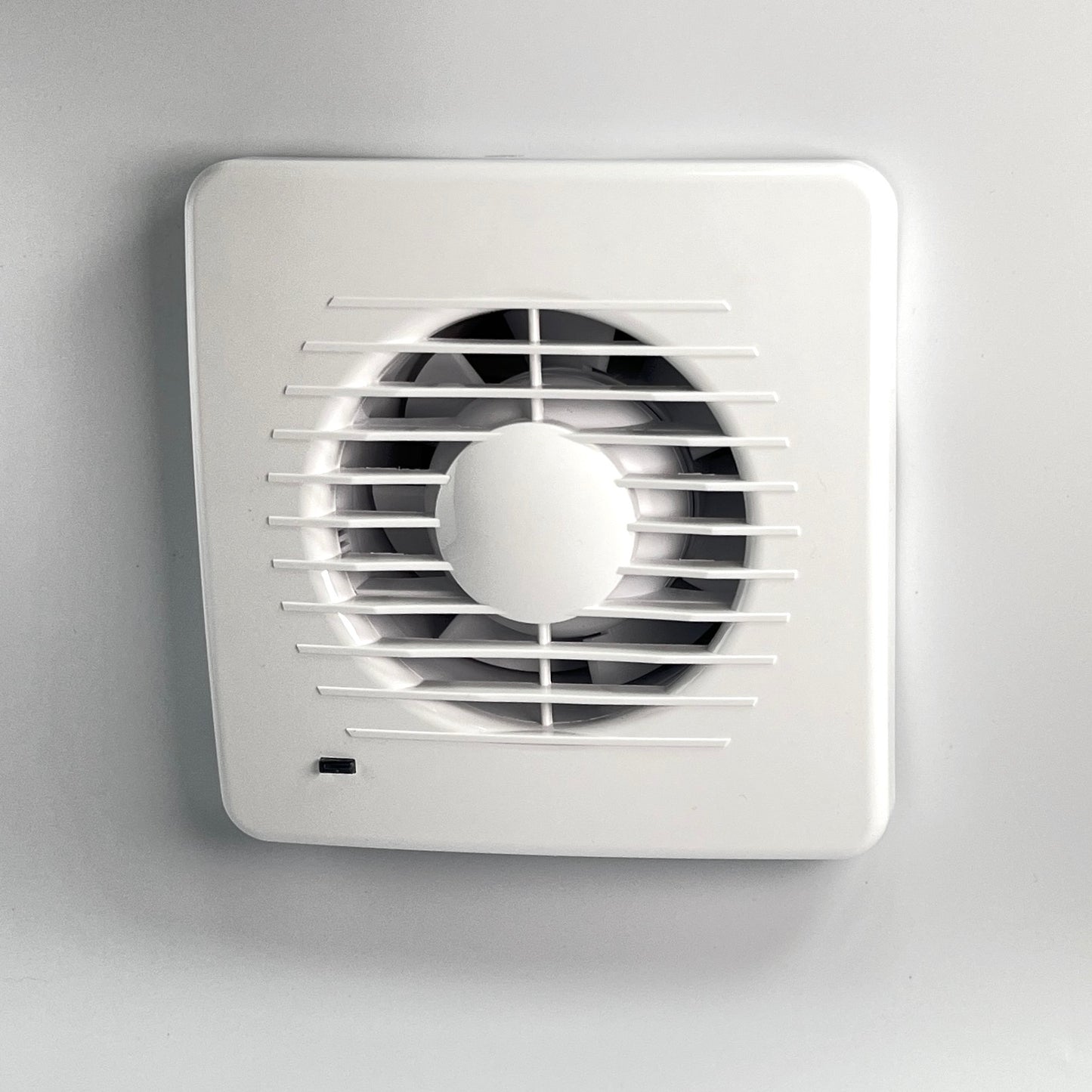

Bathroom fan Aero DK100HT
Bathroom fan Aero DK100HT
Couldn't load pickup availability
- Rated voltage: 230 V
- Colour: white
- Mains frequency: 50 Hz
- Power consumption: 19 W
- Air output: 100 m3/h
- Bearing type: ball bearing
- Degree of protection (IP): IP-X4
- Sound pressure level: 39.5 dB (A)
- Speed: 2550 rpm
- Nominal size: 100 mm
- Material: ABS/PP
- Place of installation: Wall/ceiling
- Mounting type: surface-mounted
- Fan weight: 0.46 kg
- A: 158 mm
- B: 159 mm
- C: 53 mm
- D: 99 mm
- E: 21 mm
- Mounting hole: Ø100 mm
Fans for ventilation in residential and commercial premises are quiet, efficient and reliable. They are made of high quality plastic for durability and aesthetics.
The duct fan is ideal for bathrooms and toilets and supports gravity ventilation. It can be installed in rooms with individual ventilation ducts in residential and public buildings, except where corrosion or explosion hazards may exist.
Model HT - humidity sensor fan, has all the functions of system T. In addition, it is equipped with a humidity sensor that activates the fan when the set humidity threshold is exceeded. The fan automatically switches off after a preset delay time, counting from the moment the humidity level is reached or the switch is turned off.
A fan with a humidistat ensures proper air circulation and maintenance of the appropriate humidity level in the room.
Construction:
- Fan made of high quality plastic.
Installation:
- Wall or ceiling mounting.
- For indoor use.
- Fixing with screws.
Equipment:
- Moisture sensor with time delay.
- LED indicator light.
