Elplast

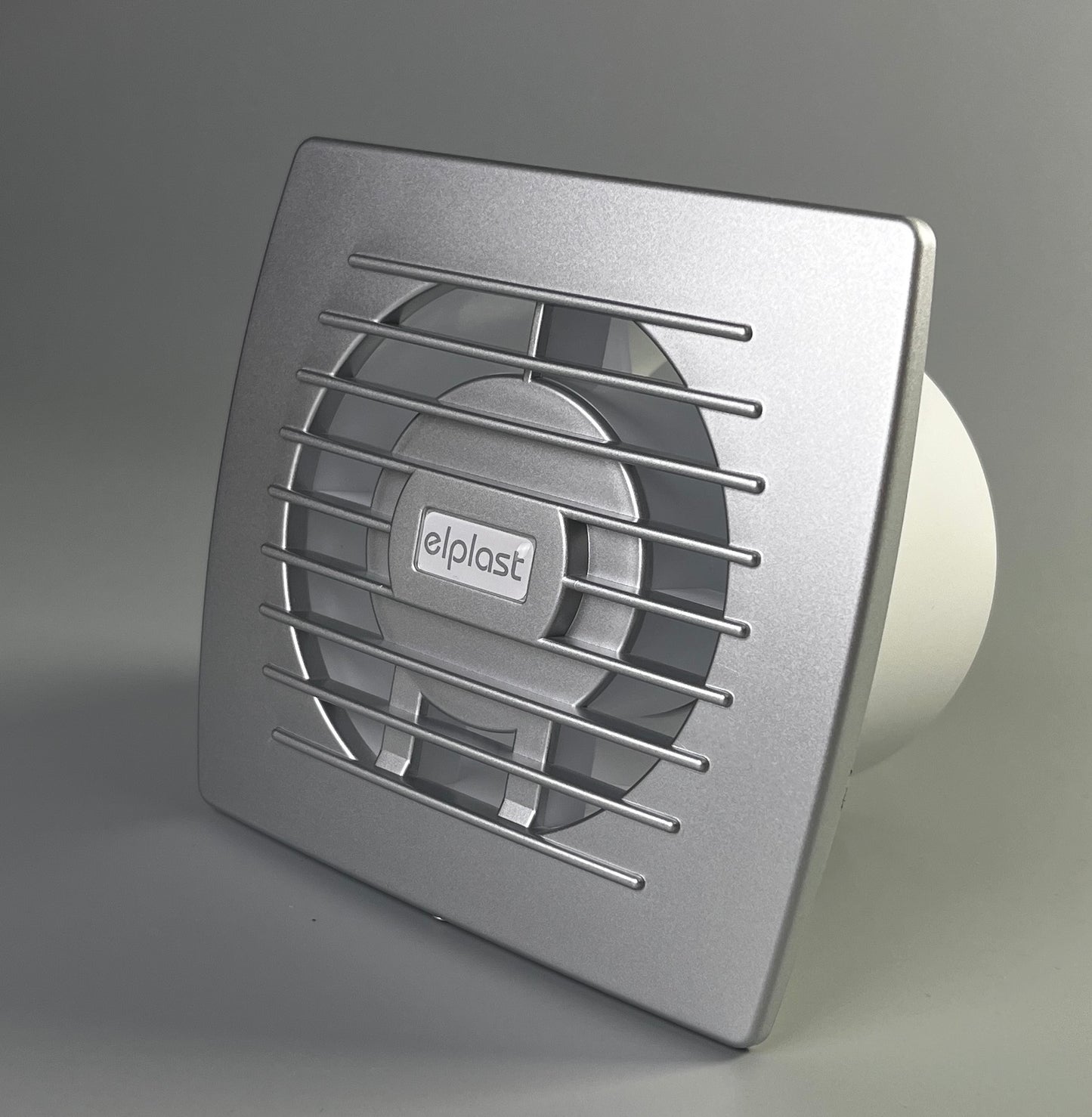

Bathroom fan Eol 100TSF

Bathroom fan Eol 100TSF

Regular price 162,00 zł PLN
Regular price Sale price 162,00 zł PLN
Sale Sold out
Tax included.

  • Rated voltage: 230 V
  • Colour: silver
  • Mains frequency: 50 Hz
  • Power consumption: 19 W
  • Air output: 100 m3/h
  • Bearing type: sliding
  • Degree of protection (IP): IP-X4
  • Sound pressure level: 39.5 dB (A)
  • Speed: 2550 rpm
  • Nominal size: 100 mm
  • Material: ABS/PP
  • Mounting location: Wall
  • Mounting type: surface mounted
  • Fan weight: 0.43 kg

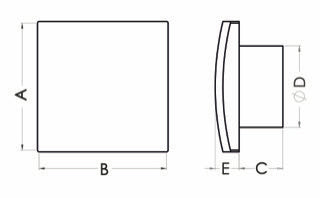

  • A: 141 mm
  • B: 131 mm
  • C: 84 mm
  • D: 99 mm
  • E: 15 mm
  • Mounting hole: Ø100 mm


Fans intended for supporting ventilation in rooms residential and commercial premises. They are characterised by quiet operation and high efficiency and reliability. High-quality material ensures durability of the device, but also maintains its aesthetic qualities.

Fan duct fan is an ideal solution for bathrooms and toilets. It is used to support gravitational ventilation and can be installed in rooms with individual ventilation ducts, in the rooms with individual ventilation ducts, in residential buildings for communal housing and public use, with the following exceptions with the exception of rooms where a corrosive or explosive atmosphere may occur. corrosive or explosive atmosphere.

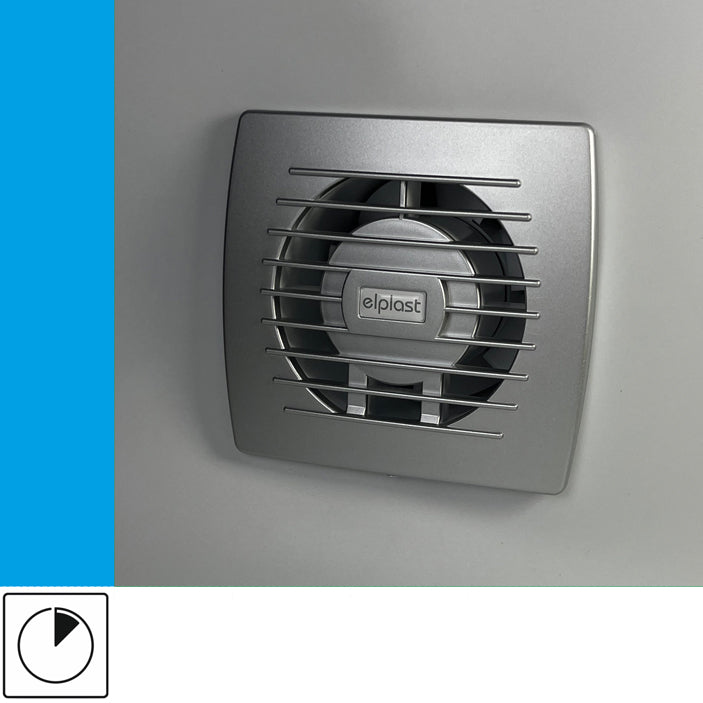

Model T - fan with timer The fan activation control requires the controller to be connected to an electrical switch. An existing the existing light switch of the ventilated room. Time setting is set by setting the control system potentiometer to the required position. The delay time can be set in the range from 0.5 to 30 min.

Construction:

Fan made of high quality plastic

Installation:
  • Wall mounting
  • For indoor use
  • Fixing with screws
Accessories:

Timer board
